8A1B02-AADNBANSAHAWA Proline Promass A 100 Coriolis flowmete
| Place of Origin | DE |
| Brand Name | Endress Hauser |
| Certification | Rohs |
| Model Number | 8A1B02-AADNBANSAHAWA |
Product Details
Main Wetted Parts::
316L, PEEK, PTFE, Polyamid
Analogue Output::
4x 0/4...20mA
Sensor Adaption::
Fixed Cable; Crimp Sleeves
Temperature Sensor::
Pt1000
Display::
LCD
Measuring Tube::
1.4539 (904L)
Approval::
Non-hazardous Area
Sensor Range::
500mbar/50kPa/7.5psi
Material::
In Contact With Medium: Virgin PEEK
Trace::
0 To 5 Mg/l HOCl
Measuring Cell::
100 Mbar...40 Bar
Warranty::
1 Year
Shaft Length::
120mm
Accuracy::
±0.5%
Cable Entry::
Gland M20x1,5
Highlight:
±0.5% Accuracy Coriolis Flowmeter
,316L Wetted Parts Promass A 100
,Ultra-Compact Housing Proline Promass
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
Negotiable
Packaging Details
Original packing
Delivery Time
on request
Payment Terms
T/T
Supply Ability
50PCS/MONTH
Product Description

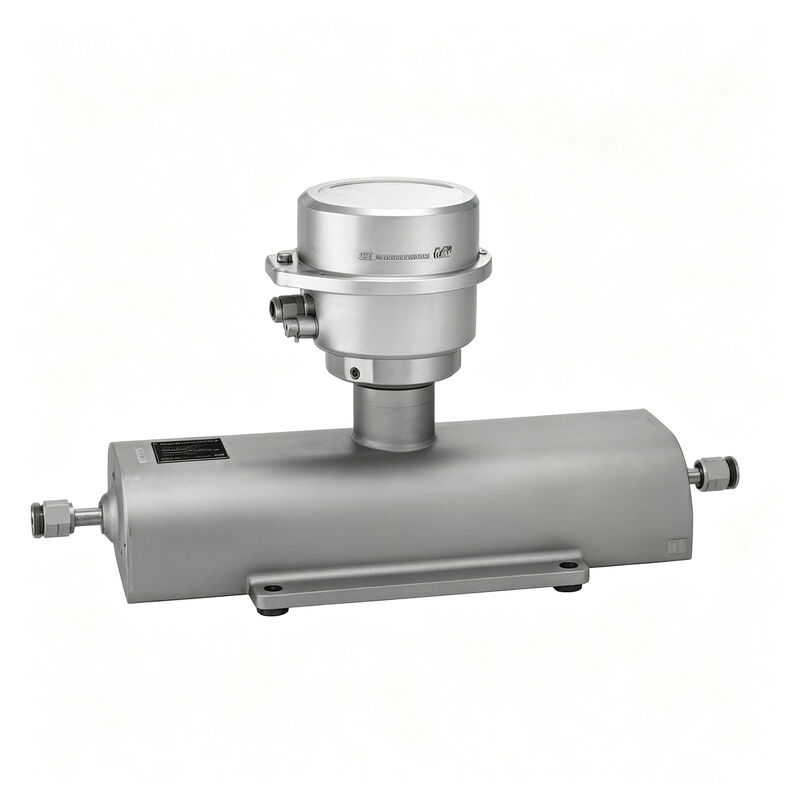

8A1B02-AADNBANSAHAWA Proline Promass A 100 Coriolis Flowmeter
Product Overview
The Promass A 100 Coriolis Flowmeter from Endress+Hauser delivers highly accurate measurement of small quantities of liquids and gases for both high-pressure and low-pressure applications. Featuring the smallest transmitter housing available today, it provides full performance with minimal footprint.
Technical Specifications
Place of Origin
DE
Brand Name
Endress Hauser
Certification
Rohs
Model Number
8A1B02-AADNBANSAHAWA
Main Wetted Parts
316L, PEEK, PTFE, Polyamid
Analogue Output
4x 0/4...20mA
Temperature Sensor
Pt1000
Display
LCD
Measuring Tube
1.4539 (904L)
Accuracy
±0.5%
Warranty
1 Year
Key Performance Specifications
Max. Measurement Error
Mass flow (liquid): ±0.1%
Volume flow (liquid): ±0.1%
Mass flow (gas): ±0.5%
Density (liquid): ±0.0005 g/cm³
Volume flow (liquid): ±0.1%
Mass flow (gas): ±0.5%
Density (liquid): ±0.0005 g/cm³
Measuring Range
0 to 450 kg/h (0 to 16.5 lb/min)
Medium Temperature Range
-50 to +205 °C (-58 to +401 °F)
Max. Process Pressure
PN 40, Class 300, 20K, 400 bar (5800 psi)
Field of Application
Promass A is the preferred choice for system integrators, skid builders, and equipment manufacturers. Available with an ultra-compact stainless steel hygienic housing, it can be placed even into the most compact rigs.
- Measuring principle operates independently of physical fluid properties such as viscosity or density
- Measures accurately smallest quantities of liquids and gases for continuous process control
Device Properties
- Nominal diameter: DN 1 to 4 (1/24 to 1/8")
- Process pressure up to 400 bar (5800 psi)
- Medium temperature up to +205 °C (+401 °F)
- Robust, ultra-compact transmitter housing
- High ingress protection: IP69K
- Local display available
Key Benefits
- Highest process safety - self-drainable measuring tube design
- Fewer process measuring points - multivariable measurement (flow, density, temperature)
- Space-saving installation - no in/outlet run needs
- Space-saving transmitter - full functionality on the smallest footprint
- Time-saving local operation without additional software and hardware - integrated web server
- Integrated verification - Heartbeat Technology
