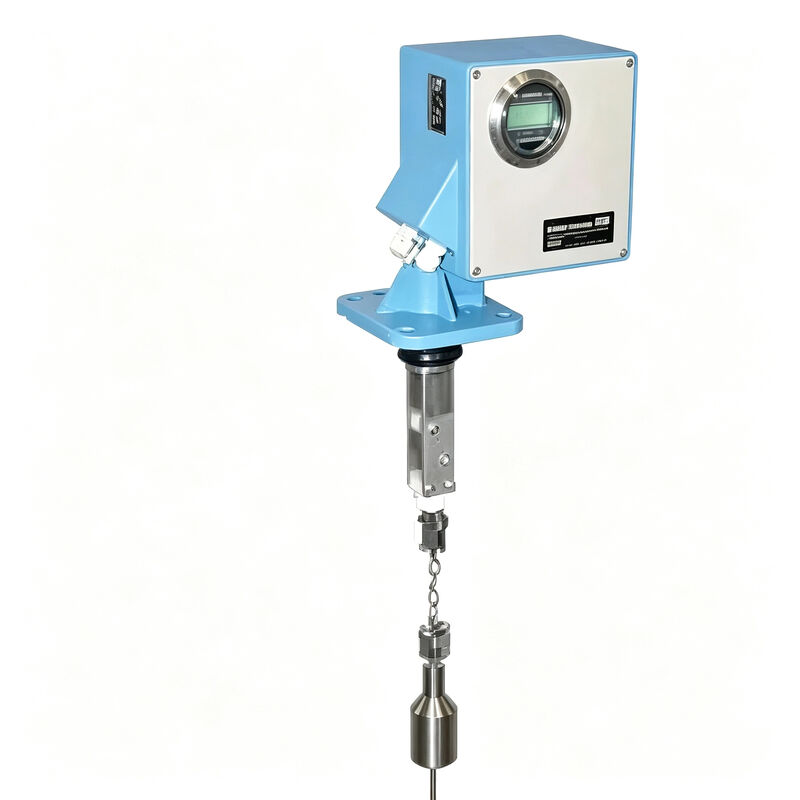

FMM20-A24B1CD1E1 Electromechanical Level Measurement Silopilot FMM20
|
FMM20-A24B1CD1E1 Electromechanical Level Measurement Silopilot FMM20
| Place of Origin | DE |
| Brand Name | Endress Hauser |
| Certification | ROHS |
| Model Number | FMM20-A24B1CD1E1 |
Product Details
Accuracy::
+/- 2.5 Cm (0.98")
Process Temperature::
-20°C ... +150°C (-4°F...302°F)
Process Pressure / Max. Overpressure Limit::
0.8 ... 1.1 Bar Abs.
Max. Measurement Distance::
42 M (138 Ft)
Main Wetted Parts::
Aluminium, Steel, Stainless Steel
Highlight:
42 M Max. Measurement Distance Silopilot FMM20
,+/- 2.5 Cm Accuracy Electromechanical Level Measurement Device
,Dusty Environments Safe Measurement Level Measurement Silopilot
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
Negotiable
Packaging Details
Original packing
Delivery Time
On request
Payment Terms
T/T
Supply Ability
500pcs/month
Product Description
FMM20-A24B1CD1E1 Electromechanical Level Measurement Silopilot FMM20
Product Highlights: Electromechanical Level Measurement Silopilot FMM20, A24B1CD1E1 Silopilot FMM20, Silopilot FMM20
Product Specifications
Place of Origin: DE
Brand Name: Endress Hauser
Certification: Rohs
Model Number: FMM20-A24B1CD1E1
Accuracy: +/- 2.5 Cm (0.98")
Process Temperature: -20°C ... +150°C (-4°F...302°F)
Process Pressure / Max. Overpressure Limit: 0.8 ... 1.1 Bar Abs.
Max. Measurement Distance: 42 M (138 Ft)
Main Wetted Parts: Aluminium, Steel, Stainless Steel
Technical Details
| Process connection | Flange DN100 PN16 / 4" |
| Blocking distance | Top: 500 mm (20") |
| Communication | 0/4...20 mA |
Field of Application
Silopilot FMM20 is a low cost device for electromechanical level measurement in bins or silos with dusty, fine-grained or coarse grained bulk solids or in tanks with liquids.
For measurement of light bulk solids such as wheat, plastic granules and powder in bunkers or silos with dusty, fine-grain or coarse-grain bulk solids.
Key Benefits
- Tried and tested, reliable measurement of light bulk solids, e.g. cereals, plastic granulate, powder
- Safe measurements in extremely dusty environments
- Fully electronic digital minimum fail-safe control, therefore no running down of the sensor weight into the silo outlet and no risk to the conveying systems
- Quick menu-guided local operation using a 4-line text display
- Supply voltage 90 to 253VAC (wide-range voltage power unit) as well as 24VDC, depending on version selected
