FMB50-2160/0 Hydrostatic Level Measurement Deltapilot FMB50
| Place of Origin | DE |
| Brand Name | Endress Hauser |
| Certification | ROHS |
| Model Number | FMB50-2160/0 |
Product Details
Accuracy::
Standard 0.2% Optional 0.1%
Process Temperature::
-10°C...100°C (14°F...212°F)
Pressure Measuring Range::
100 Mbar...10 Bar (1.5 Psi...150 Psi)
Process Pressure / Max. Overpressure Limit::
40 Bar (600 Psi)
Main Wetted Parts::
Alloy C 316L
Max. Measurement Distance:
100m (328ft) H2O
Highlight:
40 Bar Overpressure Limit Hydrostatic Level Sensor
,0.2% Accuracy Deltapilot FMB50
,100m Measurement Distance Level Measurement Device
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
Negotiable
Packaging Details
Original packing
Delivery Time
On request
Payment Terms
T/T
Supply Ability
500pcs/month
Product Description

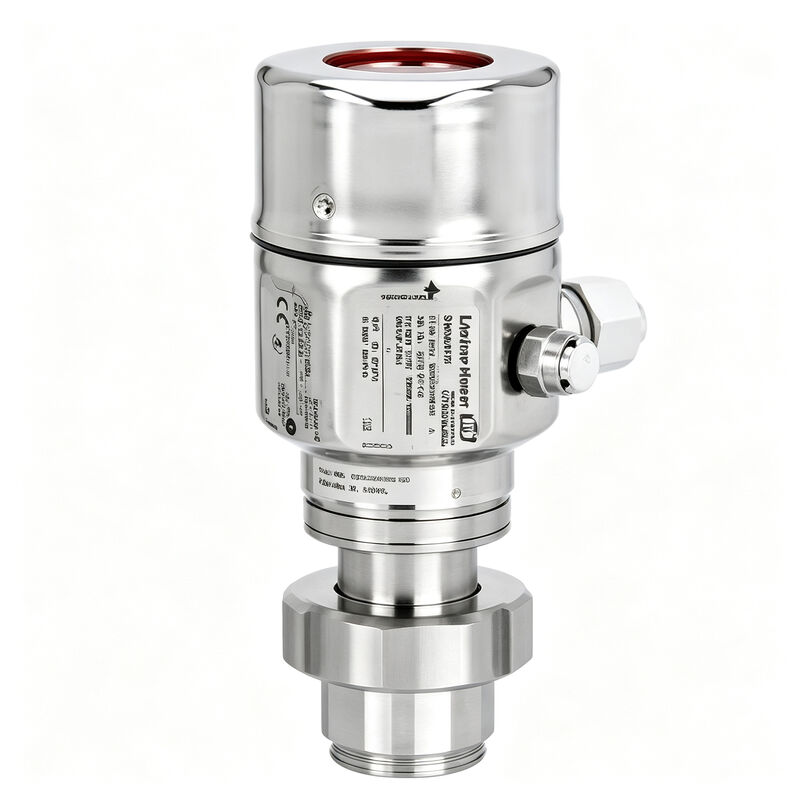

FMB50-2160/0 Hydrostatic Level Measurement Deltapilot FMB50
Product Overview
The compact Deltapilot FMB50 transmitter with condensate resistant Contite measuring cell is designed for hydrostatic level measurement in process and hygienic applications.
Technical Specifications
| Place of Origin | DE |
| Brand Name | Endress Hauser |
| Certification | Rohs |
| Model Number | FMB50-2160/0 |
| Accuracy | Standard 0.2% Optional 0.1% |
| Process Temperature | -10°C...100°C (14°F...212°F) |
| Pressure Measuring Range | 100 Mbar...10 Bar (1.5 Psi...150 Psi) |
| Process Pressure / Max. Overpressure Limit | 40 Bar (600 Psi) |
| Main Wetted Parts | Alloy C 316L |
| Max. Measurement Distance | 100m (328ft) H2O |
Material Specifications
| Process Membrane | 316L, AlloyC, Rhodium>Gold |
| Measuring Cell | 100 mbar...10 bar |
| Safety Approvals | SIL |
Field of Application
The Deltapilot FMB50 transmitter is typically used in process and hygienic applications for level measurement in liquid and paste-like media in open or closed containers, unaffected by possible foam formation. Suitable for use in SIL2 safety systems.
For level and/or pressure measurement with:
- Process connections: Thread, flanges and flush-mounted hygienic connections
- Process temperature: -10 to +100°C (14 to 212°F) (+135°C (275°F) for 30 minutes maximum)
- Measuring range: 0.1 to 10bar (1.5 to 150psi)
- Accuracy: ±0.2%, ±0.1% (option)
- International explosion protection certificates, overfill prevention WHG, SIL, hygienic certificates
Key Benefits
- Hermetically sealed Contite measuring cell with condensate-resistance, high reference accuracy: ±0.2%, optionally ±0.1% and minimum temperature effects
- Modular concept for easy replacement of display or electronics
- Seamless and independent system integration (HART/PA/FF)
- Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
- International usage thanks to a wide range of approvals
