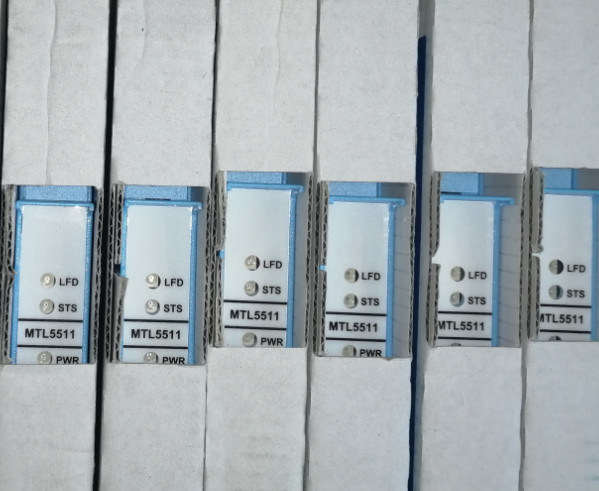

9V DC MTL5511 MTL Safety Barrier Switch Proximity Detector Interface
|
9V DC MTL5511 MTL Safety Barrier Switch Proximity Detector Interface
| Place of Origin | UK |
| Brand Name | MTL |
| Certification | ROHS |
| Model Number | MTL5511 |
Product Details
Color:
White And Blue
Material:
Plastic And Metal
Shipping Weight:
1.0Kg
Dimensions ( D X W X H ):
1.58 Cm X 10.98 Cm X 12.36 Cm
Number Of Channels:
One
Voltage Applied To Sensor:
7 To 9V Dc From 1kO ±10%
Product No:
MTL5511
Estimated Lead Time:
Usually Ships In 1-7 Working Days.
Highlight:
MTL5511 MTL Safety Barrier
,9V MTL Safety Barrier
,MTL safety barrier instrument
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
carton
Delivery Time
on request
Payment Terms
T/T
Supply Ability
100+pc+on stock
Product Description
MTL5511 MTL Safety Barrier Switch Proximity Detector Interface
The MTLx511 enables a safe-area load to be controlled by a switch or proximity detector located in a hazardous-area. Inputs conform to BS EN60947-5-6:2001 standards for proximity detectors (NAMUR).
Key Features
- Hazardous-area inputs conforming to BS EN60947-5-6:2001 standards
- Voltage applied to sensor: 7 to 9V dc from 1kΩ ±10%
- User-selectable line fault detection with LED indication
- Single pole relay with changeover contacts for safe-area output
Technical Specifications
| Parameter | Value |
|---|---|
| Input/Output Characteristics | Normal phase |
| Output State | Closed if input > 2.1mA (< 2kΩ), Open if input < 1.2mA (> 10kΩ) |
| Hysteresis | 200µA (650Ω) nominal |
| Line Fault Detection (LFD) |
Open-circuit alarm: on if Iin < 50µA, off if Iin > 250µA Short-circuit alarm: on if Rin < 100Ω, off if Rin > 360Ω |
| Resistor Requirements |
500Ω to 1kΩ in series with switch 20kΩ to 25kΩ in parallel with switch |
Important Notes
- Resistors must be fitted when using the LFD facility with a contact input
- Reactive loads must be adequately suppressed
