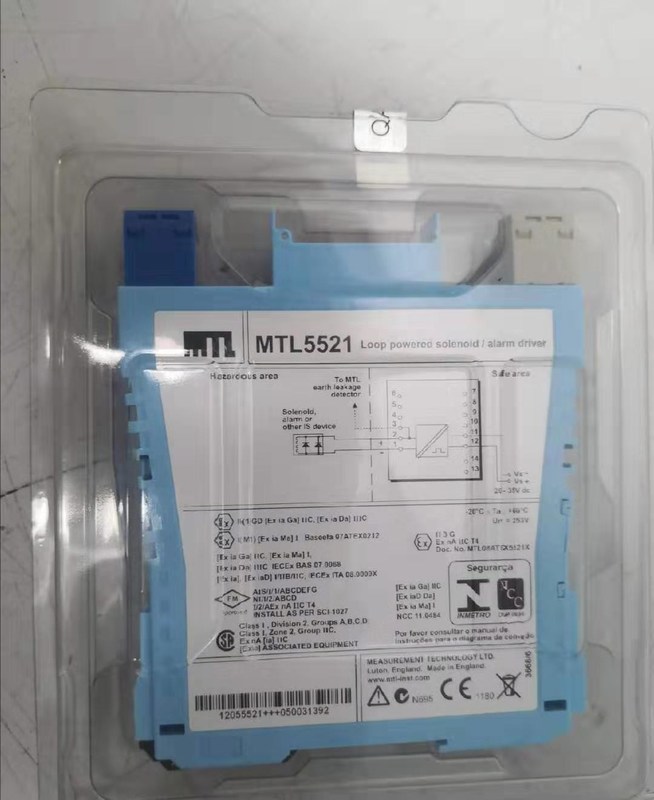

MTL5521 MTL Instrument Solenoid / Alarm Driver
| Place of Origin | UK |
| Brand Name | MTL |
| Certification | ROHS |
| Model Number | MTL5521 |
Product Details
Input Voltage:
20 To 35V Dc
Minimum Output Voltage:
13.6V At 48mA
Maximum Output Voltage::
24V From 180Ω
Current Limit::
48mA Minimum
Output Ripple:
< 0.5% Of Maximum Output, Peak To Peak
Response Time:
Output Within 10% Of Final Value Within 100ms
Manufacture:
MTL Instruments
Country Of Origin:
England
Highlight:
MTL5521 MTL Instrument Solenoid
,MTL5521 MTL Instrument Solenoid Driver
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
carton
Delivery Time
on request
Payment Terms
T/T
Supply Ability
100+pc+on stock
Product Description
MTL5521 MTL Instrument Solenoid / Alarm Driver
Product Description
The MTLx521 and the MTL4521L are loop-powered modules which enable a device located in the hazardous area to be controlled from the safe area. They can all drive a certified intrinsically safe low-power load, as well as non-energy-storing simple apparatus such as an LED.
Specifications
See also common specification:
| Feature | Detail |
|---|---|
| Number of channels | One |
| Location of load | Zone 0, IIC, T4-6 hazardous area if suitably certified Div. 1, Group A hazardous location |
