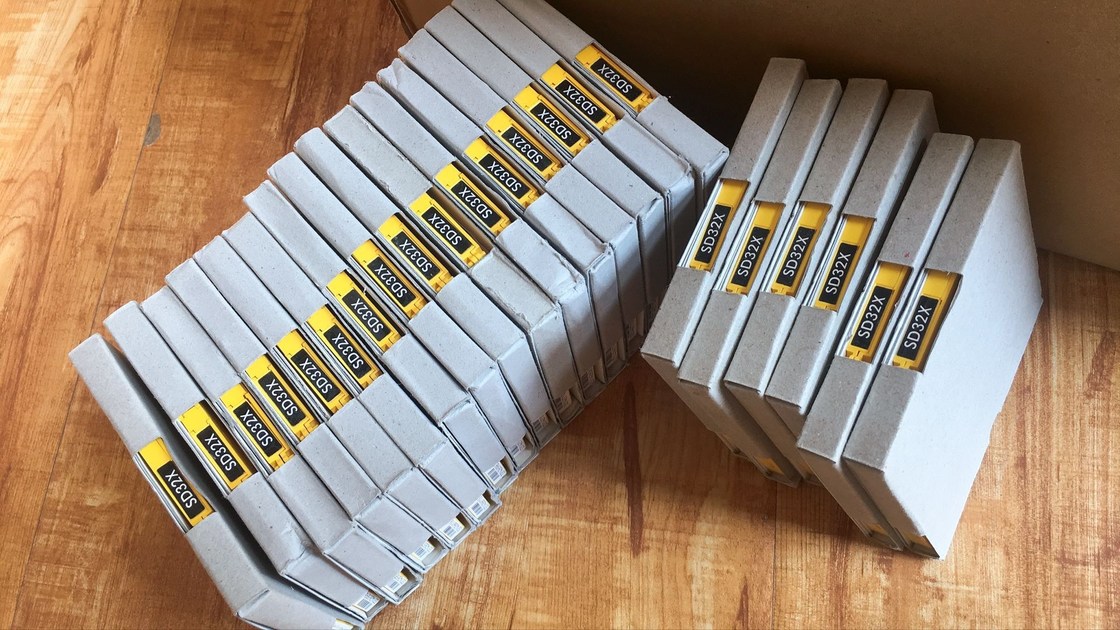

Low Resistance SD32X MTL Surge Protector Device SPD 32Vdc 22Vac IN STOCK
|
Low Resistance SD32X MTL Surge Protector Device SPD 32Vdc 22Vac IN STOCK
| Place of Origin | INDIA |
| Brand Name | MTL |
| Certification | ROHS |
| Model Number | SD32X |
Product Details
Product No:
SD32X
Product Type:
Surge Protection Device (SPD)
Nominal Voltage+ (Un):
32Vdc, 22Vac
Nominal Current (In):
400 MA
Series Resistance (W/line):
2.2
Max. Leakage Current (µA):
5
Rated Voltage *MCOV) (Uc ):
36
Special Feature:
Low Resistance
Highlight:
SD32X mtl surge protector
,SPD mtl surge protector
,32Vdc sd32x mtl
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
carton
Delivery Time
on request
Payment Terms
T/T
Supply Ability
100+pc+on stock
Product Description
Low Resistance SD32X MTL Surge Protector Device SPD 32Vdc 22Vac
MTL SD32X surge protection for Data & Signal applications. The SD Series is a range of ultra-slim, user-friendly devices designed to protect electronic equipment and systems against surges on signal and I/O cabling.
SD Series Features
- Unparalleled packing densities and application versatility
- Proven reliable hybrid circuitry
- Simple installation with optional 'loop disconnect' facilities
- Ultimate surge protection solution for process equipment, I/O systems and communications networks
- Exceptionally high packing densities with ultra slim 'footprint'
- Full hybrid surge protection for 2 and 3 wire loop protection
SDM - New Modular Device
The SD Modular (SDM) combines the proven protection of the SD series with modularity for ease of maintenance. Users can change the surge protection module without interference with wiring. Backwards compatible with the SD series, available in 7, 16, 32 & 55V with 700mA current capacity.
SDX Series
SDX units (SD07X, SD16X, SD32X and SD55X) are suitable for a wide range of applications including THCs, 4-20mA loops, shut-down systems and fire and gas detectors.
SD Variants
SD variants feature fused protection against fault currents and a convenient method of isolating field circuitry. Includes a third connection for terminating screens safely to earth.
SDR Series
Designed for high speed data links with extremely high bandwidth. Available for RS232, RS422, RS485, and bus powered systems. Classed as simple apparatus for use in hazardous areas.
SD32T3, SDRTD, SDR3 Series
The most compact 3-wire surge protectors on the market:
- SD32T3: Three terminal SPD for 3-wire transmitters or sensors
- SDRTD: Designed specifically for Resistance Temperature Detectors
- SDR3: Three terminal SPD for high bandwidth applications
Available Models
| Model |
|---|
| SD07 |
| SD16 |
| SD32 |
| SD55 |
| SD07R |
| SD16R |
| SD32R |
| SD55R |
| SD07X |
| SD16X |
| SD32X |
| SD55X |
| SD32T3 |
| SD07R3 |
| SD16R3 |
| SD32R3 |
| SD55R3 |
| SDRTD |
| SDPSTN |
| SD150X |
| SD275X |
Part Numbers & Descriptions
Digital Input, Digital Output, Analogue Input, Analogue Output, Temperature Input, Pulse and Vibration, Fire and Smoke, and General purpose models available.
