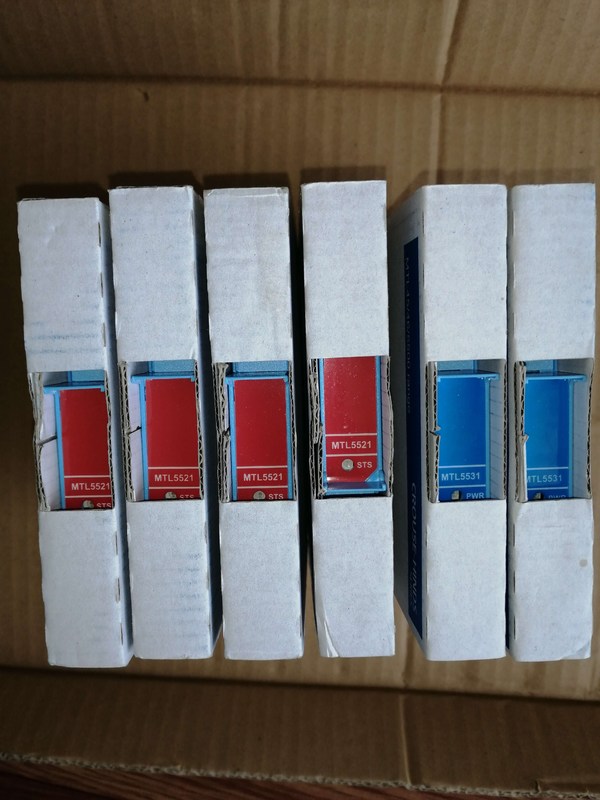

MTL5531 MTL Instruments Vibration Transducer Interface
| Place of Origin | UK |
| Brand Name | MTL |
| Certification | ROHS |
| Model Number | MTL5531 |
Product Details
Color:
White And Blue
Material:
Plastic And Metal
Product Type:
Vibration Transducer Interface
Number Of Channels:
One
Signal Range:
Minimum –20V, Maximum –0.5V
LED Indicator:
Green = Power Indication
Supply Voltage:
20 To 35V Dc
Shipping Weight:
1.0KG
Highlight:
MTL Instruments Vibration Transducer Interface
,MTL5531 Vibration Transducer Interface
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
carton
Delivery Time
on request
Payment Terms
T/T
Supply Ability
100+pc+on stock
Product Description
MTL5531 MTL Instruments Vibration Transducer Interface
The MTLx531 repeats a signal from a vibration sensor in a hazardous area, providing an output for a monitoring system in the safe area. The interface is compatible with 3-wire eddy-current probes and accelerometers or 2-wire current sensors; the selection is made by a switch on the side of the module.
Key Features
- Compatible with 3-wire eddy-current probes and accelerometers or 2-wire current sensors
- Switch-selectable sensor type
- Designed for hazardous area applications
- Green LED power indicator
Technical Specifications
| Manufacturer | MTL Instruments |
|---|---|
| Product No. | MTL5531 |
| Product Type | Vibration Transducer Interface |
| Number of Channels | One |
| Sensor Type | 2- or 3-wire vibration transducer |
| Hazardous Area Input | Input impedance (terminals 2 & 3): 10kΩ |
| Transducer Supply Current (2-wire) | 3.3mA (nom.) for 2-wire sensors, user selectable by switch |
| Signal Range | Minimum -20V, maximum -0.5V |
| DC Transfer Accuracy at 20°C | <±50mV |
| Safe-area Output Impedance | <20Ω |
| Supply Voltage | 20 to 35V dc |
| Maximum Current Consumption (10mA transducer load) | 65mA at 24V |
| Maximum Power Dissipation | 1.33W |
| Dimensions (D × W × H) | 1.58 cm × 10.98 cm × 12.36 cm |
| Weight | 0.11 Kg |
| Shipping Weight | 1.0 Kg |
Certifications
Suitable for Zone 0, IIC, T4-6 hazardous area if suitably certified Div. 1, Group A hazardous location.
