Emerson Rosemount Pressure Transmitter
>

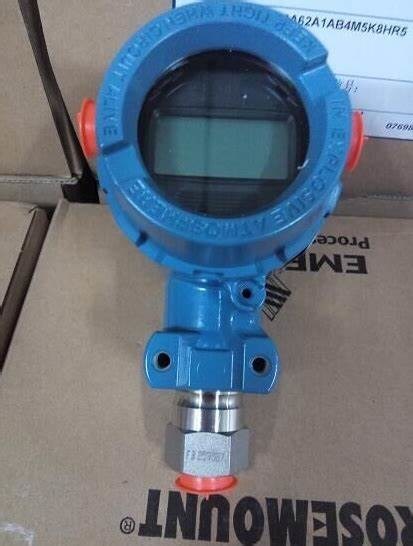

Rosemount 3051CD2A02A1AH2B2M4HR5 3051 ifferential Pressure Transmitters
|
Rosemount 3051CD2A02A1AH2B2M4HR5 3051 ifferential Pressure Transmitters
| Place of Origin | Singapore |
| Brand Name | Emerson Rosemount |
| Certification | ROHS |
| Model Number | 3051CD2A02A1AH2B2M4HR5 |
Product Details
Origin:
Singapore
Model:
3051CD2A02A1AH2B2M4HR5
Diaphragm Material:
316L Stainless Steel
Temperature Sensor Range:
-40 To 800°F (-40 To 427°C)
Output:
4-20 MA With HART 5 Or 7
Product Type:
3051T In-line Pressure Transmitter
Highlight:
Rosemount 3051 differential pressure transmitter
,Emerson Rosemount industrial pressure sensor
,3051CD2A02A1AH2B2M4HR5 pressure transmitter with warranty
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
carton
Delivery Time
on request
Payment Terms
T/T
Supply Ability
1~1000pcs
Product Description
Rosemount 3051CD2A02A1AH2B2M4HR5 3051 Differential Pressure Transmitters
Product Specifications
| Warranty | Up to 15-year limited warranty |
|---|---|
| Rangedown | Up to 150:1 |
| Communication Protocol | WirelessHART® |
| Measurement Range | Up to 2000psi (137,89 bar) Differential, Up to 2000psig (137,89 bar) Gage, Up to 4000psia (275,79 bar) Absolute |
| Process Wetted Material | 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST |
| Diagnostics | Basic Diagnostics |
| Certifications/Approvals | NSF, NACE, hazardous location, see full specs for complete list of certifications |
| Update Rate | 1 sec. to 60 min., user selectable |
| Power Module Life | Up to 10-year life, field replaceable (order separately) |
| Wireless Range | Internal antenna (225 m) |
Key Features
- WirelessHART® technology is secure and cost-effective with >99% data reliability
- Over 10 million 3051 devices installed globally for reliable pressure readings in harsh environments
- Patented Coplanar technology allows direct mounting to multiple measurement applications
- Complete pressure assemblies are leak-tested and calibrated to reduce leak points up to 70%
- Integrated differential pressure (DP) flowmeters and DP level solutions improve reliability and performance
- 10-year installed stability and 150:1 rangedown for reliable measurements and wide application flexibility
- SmartPower™ module provides up to 10-year maintenance-free operation with field replacement capability
- Easy installation enables quick instrumentation without wiring costs
Performance Standards
- More than seven million units installed
- Reference accuracy 0.04% of span
- Installed total performance of 0.14% of span
- 10-year stability of 0.2% of URL
Application Flexibility
- Improve reliability with integrated DP Flowmeters and DP Level solutions
- Easy installation with fully assembled, leak-tested solutions
- Comprehensive offering to meet diverse application needs
WirelessHART Capabilities
- Cost-effective wireless implementation on proven platform
- Industry's only intrinsically safe power module for optimized safety
- Eliminates wiring complexities, lowering costs by 40-60%
- Quick deployment of new measurements in 70% less time
Integrated DP Flowmeters
- Fully assembled, configured, and leak tested for out-of-the-box installation
- Reduces straight pipe requirements and lowers permanent pressure loss
- Up to 1.65% volumetric flow accuracy at 8:1 turndown
DP Level Technologies
- Comprehensive process connections for virtually any application
- Quantify and optimize total system performance with QZ option
- Operates at higher temperatures and in vacuum applications
- Cost efficient Tuned-System Assemblies for level measurement
Related Product Models
3051C Coplanar Pressure Transmitter
3051T In-Line Pressure Transmitter
3051CF Flowmeter
3051CFA Annubar Flowmeter
3051CFC Compact Flowmeter
3051CFP Integral Orifice Flowmeter
3051L Level Transmitter
3051T In-Line Pressure Transmitter
3051CF Flowmeter
3051CFA Annubar Flowmeter
3051CFC Compact Flowmeter
3051CFP Integral Orifice Flowmeter
3051L Level Transmitter
Additional Model Numbers
3051TG1A2B21AB4 3051TG1A2B21AB4M5 3051TG1A2B21AB4K5M5 3051TG2A2B21AB4
3051TG2A2B21AB4M5 3051TG2A2B21AB4K5M5 3051TG3A2B21AB4 3051TG3A2B21AB4M5
3051TG3A2B21AB4K5M5 3051TG4A2B21AB4 3051TG4A2B21AB4M5 3051TG4A2B21AB4K5M5
3051TG5A2B21AB4 3051TG5A2B21AB4M5 3051TG5A2B21AB4K5M5
3051TG2A2B21AB4M5 3051TG2A2B21AB4K5M5 3051TG3A2B21AB4 3051TG3A2B21AB4M5
3051TG3A2B21AB4K5M5 3051TG4A2B21AB4 3051TG4A2B21AB4M5 3051TG4A2B21AB4K5M5
3051TG5A2B21AB4 3051TG5A2B21AB4M5 3051TG5A2B21AB4K5M5
