Emerson Rosemount Pressure Transmitter
>
FKM Viton Seal Emerson Rosemount Pressure Transmitter Differential Pressure Deltabar PMD75-ACA7FB3DAAU
|
FKM Viton Seal Emerson Rosemount Pressure Transmitter Differential Pressure Deltabar PMD75-ACA7FB3DAAU
| Place of Origin | Germany |
| Brand Name | E&H |
| Certification | Rohs |
| Model Number | PMD75-ACA7FB3DAAU |
Product Details
Seal:
FKM Viton
Approval:
Non-hazardous Area
Output; Operating:
4-20mA HART; Inside
Membrane Material:
Monel
Process Connection:
NPT1/4-18 IEC61518 UNF7/16-20, 316L Incl. 2 Valves, 316L
Additional Option 1:
Not Selected
Additional Option 2:
Mounting Bracket, Wall/pipe, 316L, Heavy Duty Design
Nominal Range; Cell Material; PN:
500mbar/50kPa/7.5psi; 316L; 160bar/ 16MPa/2400psi
Highlight:
FKM Emerson Rosemount Pressure Transmitter
,Deltabar Emerson Rosemount Pressure Transmitter
,Rosemount Deltabar PMD75
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
standard carton packing
Delivery Time
on request
Payment Terms
T/T
Supply Ability
0-1000pcs
Product Description

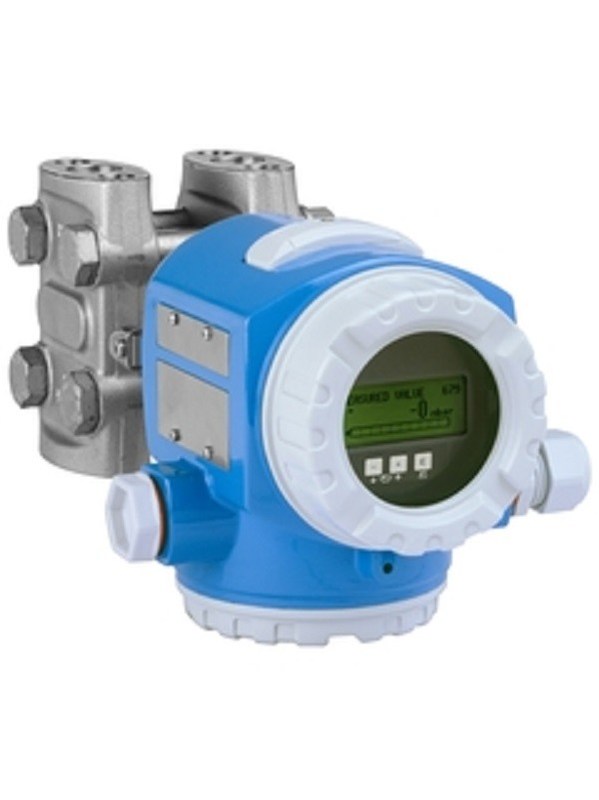

FKM Viton Seal Emerson Rosemount Pressure Transmitter Differential Pressure Deltabar PMD75-ACA7FB3DAAU
Product Description
PMD75-ACA7FB3DAAU Differential Pressure Deltabar PMD75
Technical Specifications
| Feature | Specification |
|---|---|
| Approval | A Non-hazardous area |
| Output; Operating | C 4-20mA HART; inside |
| Housing; Cover Sealing; Cable Entry | A T14 Alu IP66/67 NEMA6P; EPDM; M20 gland, T14 = side cover (Ex d > M20 thread) |
| Nominal Range; Cell Material; PN | 7F 500mbar/50kPa/7.5psi; 316L; 160bar/16MPa/2400psi |
| Calibration; Unit | B Customised; see additional spec |
| Membrane Material | 3 Monel |
| Process Connection | D NPT1/4-18 IEC61518 UNF7/16-20, 316L incl. 2 valves, 316L |
| Seal | A FKM Viton |
| Additional Option 1 | A Not selected |
| Additional Option 2 | U Mounting bracket, wall/pipe, 316L, heavy duty design |
Detailed Specifications
- Low range value: -10 mbar
- Upper range value: 300 mbar
- Meas.characteristic: Linear
- Display at 4mA (HART only): null
- Display at 20mA (HART only): null
- Display unit: null
Key Performance Metrics
| Parameter | Value |
|---|---|
| Accuracy (Standard) | 0.05% |
| Accuracy (Platinum) | up to 0.035% |
| Max. measurement error | 0.075% |
| Max. measurement error (PLATINUM) | 0.05% |
| Process temperature | -40 °C...85 °C (-40 °F...185 °F) |
| Pressure measuring range | 10 mbar...250 bar (0.15 psi...3750 psi) |
| Process pressure / max. overpressure limit | 420 bar (6300 psi) |
| Main wetted parts | Alloy C276, 316L, Monel, Tantalum |
| Max. measurement distance | 400 m (1.312 ft) H2O |
Field of Application
The Deltabar PMD75 differential pressure transmitter with piezoresistive sensor and welded metallic membrane is used in all industries for continuous measurement in liquids, vapors and gases. The 3-key operation enables simple and reliable commissioning and operation. The integrated HistoROM data module allows easy management of process and device parameters. Designed according to IEC 61508 for use in SIL2/3 safety applications.
For level, volume or mass measurement in liquids, differential pressure monitoring as well as flow measurement (volume or mass flow) in conjunction with primary elements in gases, vapors and liquids.
Key Features
- Process connections: Threads
- Process temperature: -40 to +85°C (-40 to +185°F)
- Measuring ranges: 0.25mbar to 40bar (0.0036 to 600psi)
- Accuracy: ±0.05%, "Platinum" ±0.035% (optional)
- International explosion protection certificates, overfill prevention WHG, SIL, hygienic approvals, marine approvals
Product Benefits
- Best accuracy, reproducibility and long-term stability
- Highest safety due to gas tight feedthrough with capabilities up to SIL2/3, certified to IEC 61508
- Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
- HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
- Cost savings with modular concept for easy replacement of sensor, display or electronics
- Overload-resistant up to 420bar / 42MPa / 6300psi, function-monitored
- Seamless and independent system integration (HART/PA/FF)
