Emerson Rosemount Pressure Transmitter
>
ASTM B85 Aluminium Fisher 67CFR 362 Instrument Supply Regulators
|
ASTM B85 Aluminium Fisher 67CFR 362 Instrument Supply Regulators
| Place of Origin | ASSEMBLE IN China |
| Brand Name | emerson |
| Certification | ROHS |
| Model Number | 67CFR-362 |
Product Details
Origin:
Assemble In China
Model No:
67CFR-362
Manufacturer:
Fisher
Product Type:
67C Series Instrument Supply Regulators
Body And Spring Case:
Aluminum (ASTM B85/Alloy 380)
Upper Spring Seat:
Zinc-plated Steel
Shipping Weight:
1kg
Warranty:
12 Months
Highlight:
ASTM fisher 67cfr 362
,fisher 67cfr 362 Regulators
,67CFR 362 Regulator
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
standard carton packing
Delivery Time
on request
Payment Terms
T/T
Supply Ability
1~1000pcs
Product Description

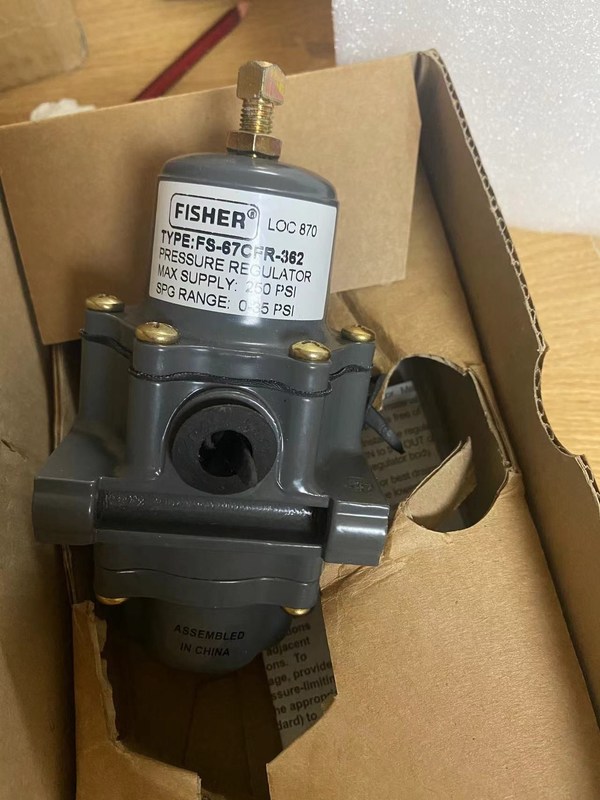

ASTM B85 Aluminium Fisher 67CFR 362 Instrument Supply Regulators
67C Series Instrument Supply Regulators 67CFR 362
Estimated Lead Time: Usually ships in 1 - 10 working days.
Manufacturer: Fisher
Model No.: 67CFR-362
Product type: 67C Series Instrument Supply Regulators
Materials
- Body and Spring Case: Aluminum (ASTM B85/Alloy 380)
- Pusher Post and Valve Cartridge: Polyester resin
- Upper Spring Seat: Zinc-plated steel
- Lower Spring Seat, Diaphragm Plate: Chromate conversion coated Aluminum
- Control Spring: Plated Steel or Inconel® (NACE)
- Diaphragm and O-Rings: Nitrile (NBR), Fluorocarbon (FKM) or Silicone (VMQ)
- Soft Seat and Gaskets: Nitrile (NBR) or Fluorocarbon (FKM)
- Bolting, Adjusting Screw, Locknut: Zinc-plated steel or Stainless steel
- Shipping Weight: 3 Kg
Applications
Fisher Type 67CFR-362 Instrument Supply Regulators are typically used to provide constantly controlled, reduced pressures to pneumatic and electropneumatic controllers and other instruments. The 67C Series are suitable for most air or gas applications. Other applications include providing reduced pressure for air chucks, air jets, and spray guns.
Specifications
- Body Material: Aluminum
- Body Size and End Connection: 1/4 NPT
- Maximum Inlet Pressure: 250 psig / 17.2 bar
- Maximum Emergency Outlet Pressure: 50 psi / 3.4 bar over outlet setting
- Temperature Capabilities: NBR: -40 to 180°F / -40 to 82°C || FKM: 0 to 300°F / -18 to 149°C || Silicone (VQM) Diaphragm and Low Temp Bolting: -60 to 180°F / -51 to 82°C
Common Models
| Model | Model |
|---|---|
| 67CFR-206 | 67CF-207 |
| 67CFR-224 | 67CF-208 |
| 67CFR-225 | 67CF-210 |
| 67CFR-226 | 67CF-211 |
| 67CFR-235 | R622-1 |
| 67CFR-237 | 67CRF-600TB |
| 67CR-239 | 67CRF-601 |
| 67CFR-24 | 67CRF-600SC |
| 67CFR-26 | 67CRF-601TB |
| 67CFR-260 | 67CRF-N224 |
| 67CFR-362 | 67CRF-N225 |
| 67CFR-581 | 67CR-206 |
| 67CFR-585 | 67CR-207 |
| 67CFR-600 | 67CR-208 |
| 67CRF-600SC | R622-2 |
| 67CF-362SC | R622-3 |
| 67CF-362TB | R622-4 |
| 67CFR-38 | R622-5 |
| 67C-413 | R622-6 |
| 67C-414 | R622-7 |
| 67C-443 | R622-18 |
| 67CF-206 | R622-20 |
