Emerson Rosemount Pressure Transmitter
>
Guided Radar Measurement Time Emerson Rosemount Pressure Transmitter Flight Levelflex FMP57-AAACCANCA4AHJ+F3
|
Guided Radar Measurement Time Emerson Rosemount Pressure Transmitter Flight Levelflex FMP57-AAACCANCA4AHJ+F3
| Place of Origin | Germany |
| Brand Name | E&H |
| Certification | Rohs |
| Model Number | FMP57-AAACCANCA4AHJ+F3 |
Product Details
Seal:
FKM Viton, -30...150oC/-22...302oF
Approval:
Non-hazardous Area
Housing:
GT20 Dual Compartment, Alu, Coated
Display, Operation:
SD02 4-line, Push Buttons + Data Backup Function
Power Supply; Output:
2-wire; 4-20mA HART
Electrical Connection:
Gland M20, IP66/68 NEMA4X/6P
Highlight:
Guided Radar Emerson Rosemount Pressure Transmitter
,Flight Levelflex Emerson Rosemount Pressure Transmitter
,Emerson Levelflex FMP57
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
standard carton packing
Delivery Time
on request
Payment Terms
T/T
Supply Ability
0-1000pcs
Product Description

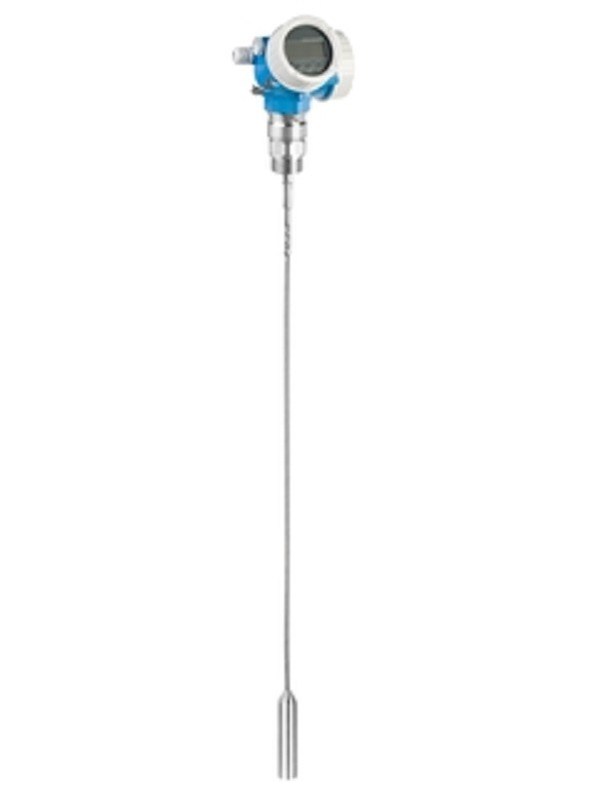

Guided Radar Measurement Time Emerson Rosemount Pressure Transmitter Flight Levelflex FMP57-AAACCANCA4AHJ+F3
Product Overview
FMP57-AAACCANCA4AHJ+F3 Guided Radar Measurement Time-Of-Flight Levelflex FMP57
| Specification | Details |
|---|---|
| Approval | AA Non-hazardous area |
| Power Supply; Output | A 2-wire; 4-20mA HART |
| Display, Operation | C SD02 4-line, push buttons + data backup function |
| Housing | C GT20 dual compartment, Alu, coated |
| Electrical Connection | A Gland M20, IP66/68 NEMA4X/6P |
| Probe | NC 10000 mm ..... mm, rope 8mm PA>steel |
| Seal | A4 FKM Viton, -30...150°C/-22...302°F |
| Process Connection | AHJ NPS 4" Cl.150 RF, 316/316L flange ASME B16.5 |
| Calibration | F3 3-point linearity protocol observe minimum probe length, rod >=1000mm, rope >=1250mm |
| Unit calibration | mm |
Key Specifications
| Parameter | Value |
|---|---|
| Accuracy |
Rod probe: ±2 mm (0.08 in) Rope probe ≤15 m (49ft): ±2 mm (0.08 in) Rope probe >15 m (49ft): ±10 mm (0.39 in) |
| Process temperature | -40...+150°C (-40...+302°F) |
| Process pressure / max. overpressure limit | Vacuum...16 bar (Vacuum...232 psi) |
| Max. measurement distance |
Rod: 4 m (13 ft) Min DK>1.4 Rope: 20-25 m (66-82 ft) Min DK >1.4 25-30 m (82-98 ft) Min DK >1.6 30-45 m (98-148 ft) Min DK>1.9 |
| Main wetted parts |
Rod probe: 316Ti, 316L, PEEK, PPS Rope probe: 304, 316, 316Ti, 316L, PEEK, PPS, PA |
Field of Application
The Levelflex FMP57 is designed for the highest demands in bulk solids measurement, particularly suited for high silos, bunkers, and stockpiles. With rope probes up to 45m in length, it excels in challenging environments where dust, filling noises, temperature layers, and gas layers are present without affecting measurement accuracy.
Key Features
- Available with rod or rope probe options
- Process connections: Thread or flange
- Temperature range: -40 to +150°C (-40 to +302°F)
- Pressure range: -1 to +16bar (-14.5 to +232psi)
- Maximum measuring range: Rod 4m (13ft), rope 45m (148ft)
- Accuracy: ±2mm (0.08")
- International explosion protection certificates, SIL, marine approval
- 5-point linearity protocol
Product Benefits
- Reliable measurement in changing product and process conditions
- HistoROM data management for easy commissioning and maintenance
- Multi-Echo Tracking evaluation for highest reliability
- IEC 61508 compliant up to SIL3
- Heartbeat Technology for safe plant operation
- Seamless integration into control systems with intuitive operation
- World's easiest proof test for SIL and WHG compliance
Common Related Models
FTL31-AA4U2AAWBJ
FTL31-AA4U2BAWSJ
FMR50-AAACCABMGGF+LA
CPS12-0NA2ESA
CM42-MJA000EAZ00
FMU40-ARB2A2
FTL31-AA4U2BAWBJ
FTM21-AA245A,L=500mm
FTL31-AA4U3BAWSJ
FTL31-AA4U2AAWBJ
CPM223-MR8005
CPS16D-7AT2G
CLS21-C1N3A
FTL33-AA4N3AB1GJ+RM
FTL31-AA4M3AAWBJ+HD
