ODM Digital ORP Sensor Platinum Orbisint CPS12D-7PA21 120mm
| Place of Origin | Germany |
| Brand Name | E&H |
| Certification | Rohs |
| Model Number | CPS12D-7PA21 |
Product Details
Version:
Basic Version
Approval:
Non-hazardous Area + UKCA Marking
Shaft Length:
120mm
Measuring Surface:
Platinum
Measurement Range:
-1500 MV To +1500 MV
Measuring Principle:
Sensor ORP / Redox
Highlight:
CPS12D ORP Sensor
,Orbisint ORP Sensor
,120mm Orbisint CPS12D
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
standard carton packing
Delivery Time
on request
Payment Terms
T/T
Supply Ability
0-1000pcs
Product Description

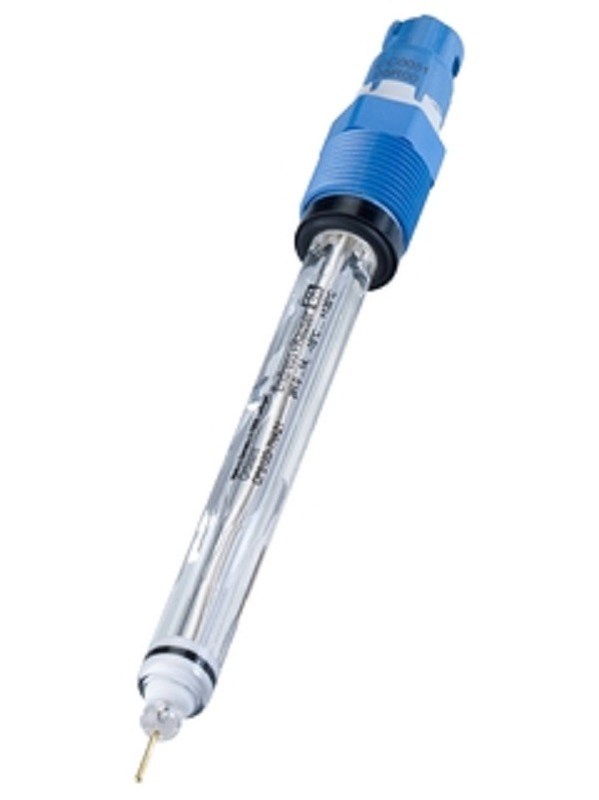

ODM Digital ORP Sensor Platinum Orbisint CPS12D-7PA21 120mm
CPS12D-7PA21 Digital ORP Sensor Orbisint CPS12D
Version: 7 Basic version
Measuring surface: PA Platinum
Shaft length: 2 120 mm
Approval: 1 Non-hazardous area + UKCA marking
Specifications
| Measurement range | -1500 mV to +1500 mV |
| Process temperature | -15 to 135 °C (5 to 275 °F) |
| Process pressure | 0 to 16 bar (0 to 232 psi) |
Field of Application
Orbisint CPS12D is the digital all-rounder for process and environment technology. It measures reliably and accurately even in hazardous areas. Designed for low maintenance and a long operating life, the electrode offers best value for money.
Note: Orbisint CPS12D is not the latest Memosens generation. For information on the new Memosens CPS12E sensor with extended functionality, please contact us.
- Long-term monitoring applications:
- Chemical industry
- Paper industry
- Power plants (e.g. flue gas washers)
- Incineration plants
- Water treatment applications:
- Drinking water
- Cooling water
- Well water
Available with ATEX, FM, CSA approval for use in hazardous areas.
Key Benefits
- Robust electrode with long poison diffusion path and large, dirt-repellent PTFE ring diaphragm for low maintenance
- Suitable for harsh applications: Process glass for highly alkaline media and pressure-stable up to 16 bar (232 psi)
- Various measuring elements for application in oxidizing or reducing media
- Maximum process safety through non-contact, inductive signal transmission
- Enables predictive maintenance through storage of sensor and process-specific data
- Reduced operating costs thanks to minimized process downtime and extended sensor lifetime
