BTL7-E100-M0150-B-KA05 BTL06YN Magnetostrictive Position Measuring System With Rod Structure

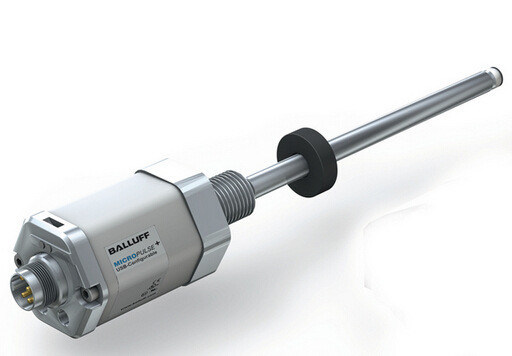

The BTL06YN BTL7-E100-M0150-B-KA05 is a magnetostrictive linear position sensor in rod design, designed for precise position measurement in industrial applications.

Certificate MTTF and MTTFD / B10d according to:

• Standard EN ISO 13849-1:2015
• SN29500 (T = 40°C)

MTTF values are calculated according to EN ISO 13849-1 Appendix C.5. Dangerous failures are assessed using the procedure specified in EN ISO 13849-1 Appendix C.5.1 (MTTFD = MTTF × 2).

Note: These specifications represent mathematical probability values and are not binding statements about quality or mission time.

Products marked with DNV GL certification have been type-tested according to DNV GL guidelines. The type approval is certified with a certificate (www.balluff.com).

Maximum nominal length: BTL7-...-A/B/Y/Z-...: 300 mm (500 mm with end support using sliding bush BAM PC-TL-001-D10,4-4 in bore with max. diameter of 13 mm).

The BTL magnetostrictive position measuring system forms a path measuring system together with a machine controller (e.g., PLC). It is intended for installation in machines or systems for industrial use.

Warning: Only original Balluff accessories guarantee proper function according to the technical data. Opening the BTL or improper use will void warranty and liability claims.

Installation and commissioning must only be performed by trained personnel with basic electrical knowledge. The operator is responsible for compliance with local safety regulations.

The products must not be used in:

• Safety-related applications where personal safety depends on device function
• Explosion-hazardous areas
• Food industry applications
