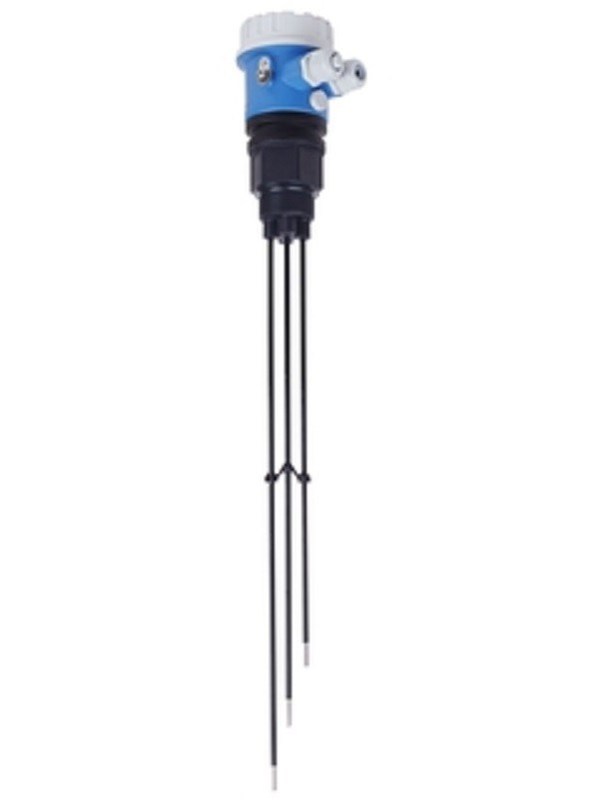

Conductive Point Level Detection Liquipoint FTW31 FTW31-A2A5AA0A
|
Conductive Point Level Detection Liquipoint FTW31 FTW31-A2A5AA0A
| Place of Origin | Germany |
| Brand Name | E&H |
| Certification | Rohs |
| Model Number | FTW31-A2A5AA0A |
Product Details
Approval:
Non-hazardous Area
Cable Entry:
Gland M20
Sensing Point:
5x Rod, 316L
Process Connection:
Thread ANSI NPT1-1/2, PPS
Electronics; Output:
Separate Instrumentation
Additional Option:
Basic Version
Highlight:
316L Liquipoint FTW31
,Non Hazardous Area Liquipoint FTW31
,FTW31-A2A5AA0A
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
standard carton packing
Delivery Time
on request
Payment Terms
T/T
Supply Ability
0-1000pcs
Product Description
Conductive Point Level Detection Liquipoint FTW31 FTW31-A2A5AA0A
Product Specifications
FTW31-A2A5AA0A Conductive Point Level Detection Liquipoint FTW31
| Approval | A Non-hazardous area |
| Process Connection | 2 Thread ANSI NPT1-1/2, PPS |
| Sensing Point | A5 5x rod, 316L |
| Probe Length | A 600 mm ..... mm L, 316L |
| Cable Entry | A Gland M20 |
| Electronics Output | 0 Separate instrumentation |
| Additional Option | A Basic version |
Key Specifications
| Process temperature | -40 °C ... 100 °C (-40 °F ... 212 °F) |
| Process pressure / max. overpressure limit | Vacuum ... 10 bar (Vacuum ... 145 psi) |
| Min. conductivity of medium | 10 µS/cm |
Field of Application
The Liquipoint FTW31 offers simple and safe point level detection in conductive liquids. It offers numerous measuring possibilities due to multipoint detection (up to 5 rods). For use in conductive liquids (as of 10μS/cm). Applications include overfill prevention, dry running protection, two-point control of pumps or multiple point detection.
- Process connections: Threads
- Sensor length: 0.1 to 4m (3.9 to 157")
- Temperature: -40 to 100°C (-40 to 212°F)
- Pressure: -1 to 10bar (-14.5 to 145psi)
- International explosion protection certificates, overfill prevention and leakage detection certificate WHG
Product Benefits
- Cost-effective probe for conductive liquids with detection of up to five point levels with one probe
- No calibration required
- Standard setting for the most common conductive liquids
- No moving parts in the tank - long service life, reliable operation with no wear or blockages
