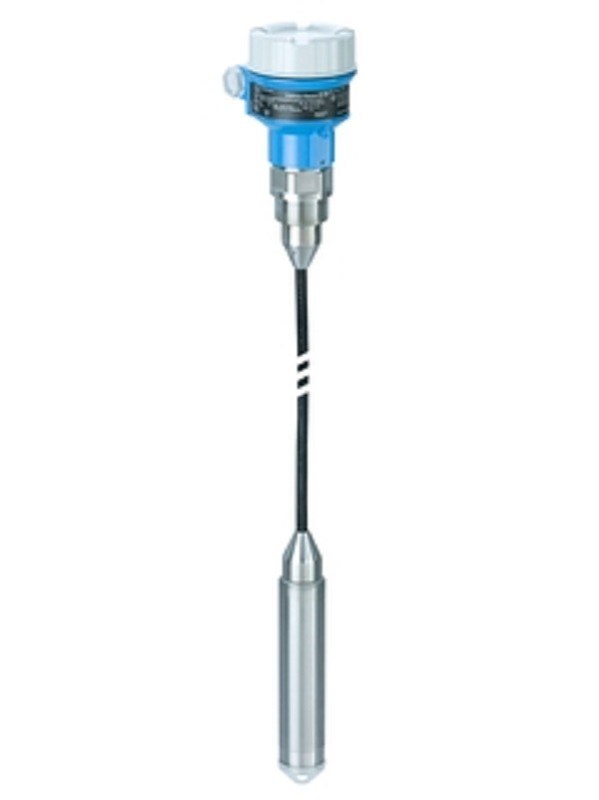

Rohs Hydrostatic Level Measurement Deltapilot FMB52-AA21JA1FGJ15RGJB3A+AA
|
Rohs Hydrostatic Level Measurement Deltapilot FMB52-AA21JA1FGJ15RGJB3A+AA
| Place of Origin | Germany |
| Brand Name | E&H |
| Certification | Rohs |
| Model Number | FMB52-AA21JA1FGJ15RGJB3A+AA |
Product Details
Approval:
Non-hazardous Area
Output:
4-20mA HART
Housing:
F31 Alu, Glass Window
Display, Operation:
LCD, Push Button On Display/electronics
Electrical Connection:
Gland M20, IP66/68 NEMA4X/6P
Reference Accuracy:
Standard
Calibration; Unit:
Customised Pressure; See Additional Spec.
Process Connection:
Thread ANSI MNPT1-1/2, 316L
Highlight:
Deltapilot Hydrostatic Level Measurement
,Rohs Hydrostatic Level Measurement
,Hydrostatic Deltapilot FMB52
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
standard carton packing
Delivery Time
on request
Payment Terms
T/T
Supply Ability
0-1000pcs
Product Description
Rohs Hydrostatic Level Measurement Deltapilot FMB52-AA21JA1FGJ15RGJB3A+AA
Product Description
FMB52-AA21JA1FGJ15RGJB3A+AA Hydrostatic Level Measurement Deltapilot FMB52
| Specification | Value |
|---|---|
| Approval | AA Non-hazardous area |
| Output | 2 4-20mA HART |
| Display, Operation | 1 LCD, push button on display/electronics |
| Housing | J F31 Alu, glass window |
| Electrical Connection | A Gland M20, IP66/68 NEMA4X/6P |
| Sensor Range | 1F 400mbar/40kPa/6psi gauge, 4mH2O/13ftH2O/160inH2O overload: 8bar/800kPa/120psi |
| Reference Accuracy | G Standard |
| Calibration; Unit | J Customised pressure; see additional spec. |
| Probe Connection | 15 1000 mm ..... mm cable, PE |
| Process Connection | RGJ Thread ANSI MNPT1-1/2, 316L |
| Membrane Material | B AlloyC |
| Fill Fluid | 3 Synthetic oil, FDA |
| Seal | A FKM Viton |
| Additional Operation Language | AA English |
Additional Details
- Low range value: -420 mbar
- Upper range value: 420 mbar
- 2nd value display: none
- Damping [s]: 2
Key Specifications
| Parameter | Value |
|---|---|
| Accuracy | Standard 0.2% Optional 0.1% |
| Process temperature | PE cable: -10°C…70°C / 14°F…158°F FEP cable: -10°C…80°C / 14°F…176°F |
| Pressure measuring range | 100 mbar...10 bar (1.5 psi...150 psi) |
| Process pressure / max. overpressure limit | 40 bar (600 psi) |
| Main wetted parts | Alloy C, 316L, Cable (PE/FEP), optional coating AuPt, optional coating AuRh |
| Max. measurement distance | 100 m (328 ft) H2O |
| Material process membrane | 316L, AlloyC, Gold-Rhodium, PE, FEP |
| Measuring cell | 100 mbar...10 bar (1.5 psi...150 psi) |
Field of Application
The Deltapilot FMB52 is a cable version including a fixed process connection. This device with the Contite measuring cell is typically used in the process and environmental industries. It is made for level measurement in liquid and paste-like media in open or closed containers and is unaffected by possible foam formation. For use in SIL2 safety systems.
- Process connections: Threads and flanges
- Temperature: With PE cable: -10 to +70°C (+14 to +158°F), with FEP cable: -10 to +80°C (14 to 176°F)
- Measuring range: 0.1 to 10bar / 100m H2O (1.5 to 150psi / 300ft H2O)
- Accuracy: ±0.2%, ±0.1% (option)
- International explosion protection certificates, overfill prevention WHG, SIL, drinking water approval
Key Benefits
- Hermetically sealed Contite measuring cell with condensate-resistance, high reference accuracy: ±0.2%, optionally ±0.1% and minimum temperature effects
- Modular concept for easy replacement of display or electronics
- Seamless and independent system integration (HART/PA/FF)
- Easy and safe menu-guided operation: On-site via display module, via 4 to 20mA with HART, via PROFIBUS PA, via FOUNDATION Fieldbus
- International usage thanks to a wide range of approvals
