Emerson Rosemount Pressure Transmitter
>

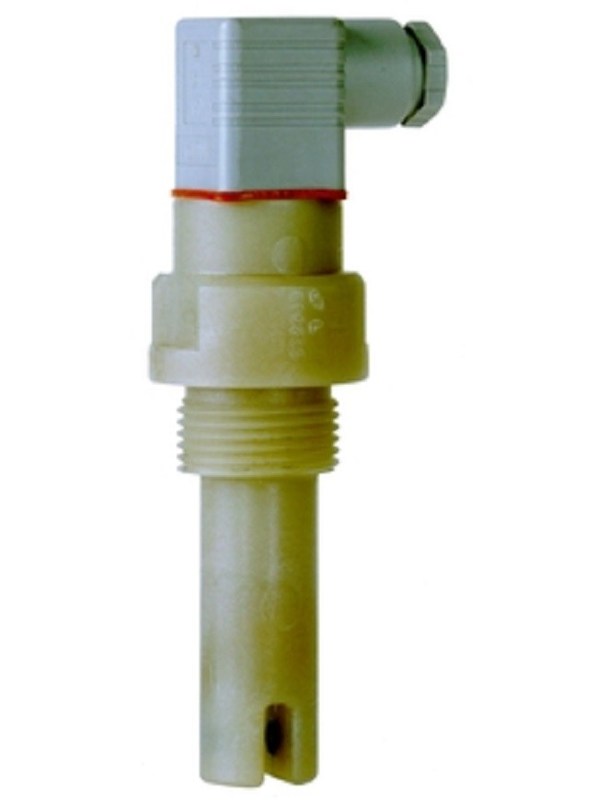

PT100 Emerson Rosemount Pressure Transmitter Analog Conductivity Sensor Condumax CLS21-C1E4A
|
PT100 Emerson Rosemount Pressure Transmitter Analog Conductivity Sensor Condumax CLS21-C1E4A
| Place of Origin | Germany |
| Brand Name | E&H |
| Certification | Rohs |
| Model Number | CLS21-C1E4A |
Product Details
Measuring Principle:
Conductive
Cable Connectio:
Plug DIN 4-pole, PG9
Process Connection:
Thread G 1"; PES
Temperature Sensor:
Pt100
Process Temperature:
Max. 135°C (max. 275°F)
Measuring Range; Cell Constant:
0,01-20,0mS/cm; (K=1)
Highlight:
Condumax Emerson Rosemount Pressure Transmitter
,PT100 Emerson Rosemount Pressure Transmitter
,Condumax Analog Conductivity Sensor
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
standard carton packing
Delivery Time
on request
Payment Terms
T/T
Supply Ability
0-1000pcs
Product Description
PT100 Emerson Rosemount Pressure Transmitter Analog Conductivity Sensor Condumax CLS21-C1E4A
Product Description
CLS21-C1E4A Analog Conductivity Sensor Condumax CLS21
| Measuring Range; Cell Constant | C 0,01-20,0mS/cm; (K=1) |
| Process Connection | 1E Thread G 1"; PES |
| Cable Connection | 4 Plug DIN 4-pole, PG9 |
| Temperature Sensor | A Pt100 |
Specs at a glance
| Measurement range (k=1) | 10,0 µS/cm - 20,0 mS/cm |
| Process temperature | max. 135°C (max. 275°F) |
| Process pressure | max. 16 bar at 20°С (max. 232psi at 68°F) |
Field of application
Condumax CLS21 is a robust conductivity sensor for all process and environmental applications. It provides precise and reliable measuring values for optimum process and product quality monitoring. The sensor features high chemical, thermal and mechanical stability with exceptional durability.
Condumax CLS21 measures conductivity in various applications including:
- Potable water treatment
- Desalination plants
- Industrial water treatment
- River/lake monitoring
- Phase separation in medium conductivities (e.g. milk/water)
With international explosion protection approvals (ATEX and FM), the sensor is suitable for hazardous area use.
Benefits
- Reliable and accurate measuring values at medium to high conductivities
- Robust design for long durability and low maintenance
- High chemical, thermal and mechanical stability
- Quality certificate stating the individual cell constant
Common related models:
Important Terms:
- Place of delivery (EXW/FOB/CIF): EXW
- Packing cost: For free
- Unit weight: Kg/lbs 8kg
- Unit dimensions: (W x L x H) : 40*35*30cm
- HS Code: 90261000
- Payment terms: TT
- Warranty: 12 months
