Emerson Rosemount Pressure Transmitter
>
Emerson 3051CG rosemount gauge pressure transmitter 3051CG3A04A1AH2M5Q4
|
Emerson 3051CG rosemount gauge pressure transmitter 3051CG3A04A1AH2M5Q4
| Place of Origin | Singapore |
| Brand Name | Emerson Rosemount |
| Certification | ROHS |
| Model Number | 3051CG3A04A1AH2M5Q4 |
Product Details
Origin:
Singapore
Model:
3051CG3A04A1AH2M5Q4
Power:
4-20 MA: 10.5-55 V Dc With No Load Low Power: 6-12 V Dc With No Load
Materials:
Sensor Wetted Parts: SST, Hastelloy, Monel, Tantalum, Gold Plated SS, Gold Plated Monel
Mounting:
Coplanar And Traditional Flanges And Adapters: Cadmium And Nickel-plated CS, 316 SST
Measures Absolute Pressure:
Up To 4000 Psia (275.8 Bar).
Measures Differential And Gage Pressure:
Up To 2000 Psi (137.9 Bar)
Output:
4—20ma,with HART Agreement Digital Signal
Diaphragm Material:
316L Stainless Steel
Highlight:
Emerson 3051CG
,Emerson Rosemount Gauge Pressure Transmitter
,275.8 bar rosemount 3051 level transmitter
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
carton
Delivery Time
on request
Payment Terms
T/T
Supply Ability
1~1000pcs
Product Description

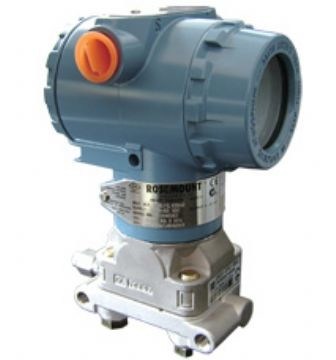

Emerson Rosemount 3051CG Gauge Pressure Transmitter 3051CG3A04A1AH2M5Q4
Product Description
Manufacturer: Rosemount
Model: 3051CG3A04A1AH2M5Q4
Model: 3051CG3A04A1AH2M5Q4
Key Specifications
- 3051C-Coplanar Pressure Transmitter
- G-Measurement Type: Gage
- Pressure Ranges: -393 to 1000 inH2O/10in H2O (-0.98 to 2.5 bar/25 mbar)
- Transmitter output: 4-20 mA with digital signal based on HART® Protocol
- Process Flange Type: Coplanar
- Flange Material: SST
- Drain/Vent: SST
- Isolating Diaphragm: 316L SST
- O-ring (Standard): Glass-filled PTFE
- Sensor Fill Fluid: Silicone
- Housing Material: Polyurethane-covered Aluminum
- Conduit Entry Size: ½-14 NPT
- Mounting Bracket: Coplanar Flange Bracket for 2-in. Pipe or Panel Mounting, all SST
- Transmitter weight: 6.0 lb (2.7 kg)
- Total weight: 2.3 kg
- Shipping weight: 3.5 kg
Product Series
- 3051CD Differential pressure transmitter
- 3051CG Gage pressure transmitter
- 3051CA Absolute pressure transmitter
Key Features
- Safety Certified to IEC 61508
- Static pressure option up to 6,092 psi (420 bar)
- Process Pressure and Sensor Temperature Alerts
- User configurable alarm and saturation values
- Adjustable low flow cut-off
Common Models
| 3051CG1A02A1AB1H2L4M5 | 3051CD0A02A1AB3H2L4M5E5 |
| 3051CG2A02A1AB1H2L4M5 | 3051CD1A02A1AB3H2L4M5E5 |
| 3051CG3A02A1AB1H2L4M5 | 3051CD2A02A1AB3H2L4M5E5 |
| 3051CG4A02A1AB1H2L4M5 | 3051CD3A02A1AB3H2L4M5E5 |
| 3051CG5A02A1AB1H2L4M5 | 3051CD4A02A1AB3H2L4M5E5 |
| 051CG1A02A1AB3H2L4M5 | 3051CD5A02A1AB3H2L4M5E5 |
