3051CG Gauge Emerson Rosemount Pressure Transmitter 3051CG2A22A1AM5B4
| Place of Origin | Singapore |
| Brand Name | Emerson Rosemount |
| Certification | ROHS |
| Model Number | 3051CG2A22A1AM5B4 |
Gauge Emerson Rosemount Pressure Transmitter
,3051CG Emerson Rosemount Pressure Transmitter
,10.5v

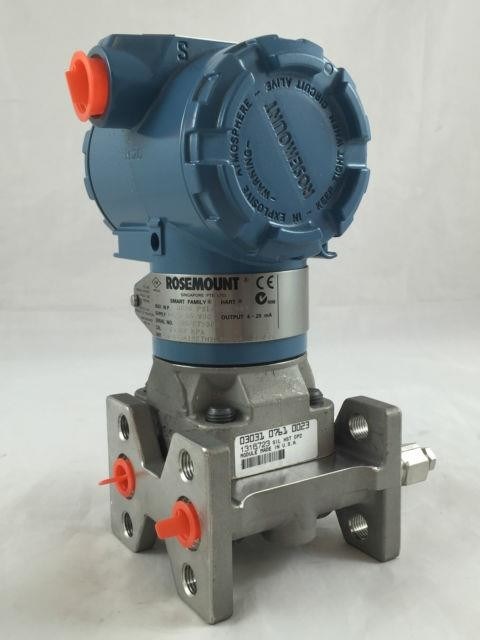

Emerson Rosemount 3051CG Gauge Pressure Transmitter 3051CG2A22A1AM5B4
Manufacturer: Rosemount
Product No.: 3051CG2A22A1AM5B4
Product type: 3051C Coplanar pressure transmitter
Measurement type: G = Gage
Pressure range: 2 = -250 to 250 inH2O (-621,60 to 621,60 mbar)
Transmitter output: A = 4-20 mA with digital signal based on HART® Protocol
Materials of construction: 2 = Coplanar Process flange type, SST Flange material, SST Drain/vent
Isolating diaphragm: 2 = 316L SST
O-ring: A = Glass-filled PTFE
Sensor fill fluid: 1 = Silicone
Housing material: B = Aluminum, M20 x 1.5 Conduit entry size
Mounting bracket: B4 = Coplanar flange bracket, all SST, 2-in. pipe and panel
Display and interface options: M5 = LCD display
Flange adapters: DF = ½-14 NPT flange adapter(s)
Weight: 3 Kg
Shipping weight: 4 Kg
- Safety Certified to IEC 61508
- Static pressure option up to 6,092 psi (420 bar)
- Process Pressure and Sensor Temperature Alerts
- User configurable alarm and saturation values
- Adjustable low flow cut-off
3051CD Differential pressure transmitter
3051CG Gage pressure transmitter
3051CA Absolute pressure transmitter
| Rosemount 3051CD | Rosemount 3051CG | Rosemount 3051CA |
|---|---|---|
| 0 | -3----3inH2O/0.1inH2O | Not present | Not present |
| 1 | -25---25inH2O/0.5inH2O | -25--25inH2O/0.5inH2O | 0--30psia/0.3psia |
| 2 | -250--250inH2O/2.5inH2O | -250--250inH2O/2.5inH2O | 0--150psia/1.5psia |
| 3 | -1000--1000inH2O/10inH2O | -407-1000inH2O/10inH2O | 0--800psia/8psia |
| 4 | -300--300psi/3psi | -14.7--300psi/3psi | 0--4000psia/40psia |
| 5 | -2000--2000psi/20psi | -14.7--2000psi/20psi | Not present |
| Code | Description |
|---|---|
| A | 4--20ma,with HART agreement digital signal |
| M | 1--5Vdc,with HART agreement digital signal |
| F | FF fieldbus |
| W | profibus |
| Process flange type | Flange material | Liquid/gas discharge valve | Flange joint material |
|---|---|---|---|
| 5 | coplane | Electroplate carbon steel | Stainless steel | Electroplate carbon steel |
| 2 | Coplane | Stainless steel | Stainless steel | Stainless steel |
| 3 | coplane | Hastelloy C | Hastelloy C | Hastelloy C |
| 4 | Coplane | Monel | Monel | Monel |
| 8 | coplane | Electroplate carbon steel | Hastelloy C | Electroplate carbon steel |
| 7 | coplane | Stainless steel | Hastelloy C | Stainless steel |
| 0 | Replace flange |
| Code | Material |
|---|---|
| 2 | 316L stainless steel |
| 3 | Hastelloy C |
| 4 | Monel |
| 5 | Tantalum |
| 6 | Gold plated monel |
| 7 | Gold plated stainless steel |
