Emerson Rosemount Pressure Transmitter
>
4MA Emerson Rosemount Pressure Transmitter , 3051CG Gauge Pressure Transmitter
|
4MA Emerson Rosemount Pressure Transmitter , 3051CG Gauge Pressure Transmitter
| Place of Origin | Singapore |
| Brand Name | Emerson Rosemount |
| Certification | ROHS |
| Model Number | 3051CG1A22A1AM5Q4 |
Product Details
Origin:
Singapore
Model:
3051CG1A22A1AM5Q4
Power:
4-20 MA: 10.5-55 V Dc With No Load Low Power: 6-12 V Dc With No Load
Materials:
Sensor Wetted Parts: SST, Hastelloy, Monel, Tantalum, Gold Plated SS, Gold Plated Monel
Mounting:
Coplanar And Traditional Flanges And Adapters: Cadmium And Nickel-plated CS, 316 SST
Measures Absolute Pressure:
Up To 4000 Psia (275.8 Bar).
Measures Differential And Gage Pressure:
Up To 2000 Psi (137.9 Bar)
Output:
4—20ma,with HART Agreement Digital Signal
Diaphragm Material:
316L Stainless Steel
Highlight:
10.5V Emerson Rosemount Pressure Transmitter
,4ma Emerson Rosemount Pressure Transmitter
,3051CG Gauge Pressure Transmitter
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
carton
Delivery Time
on request
Payment Terms
T/T
Supply Ability
1~1000pcs
Product Description

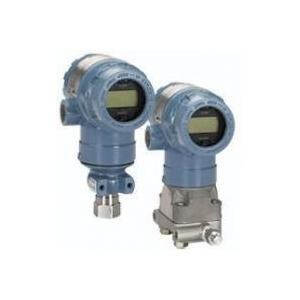

Emerson Rosemount 3051CG Gauge Pressure Transmitter
Product Description
The Emerson Rosemount 3051CG1A22A1AM5Q4 is a high-performance gauge pressure transmitter designed for industrial applications.
Key Specifications
- Manufacturer: Rosemount
- Measurement Type: Gage
- Pressure Range: -25 to 25 inH2O/0.5 inH2O (-62.1 to 62.2 mbar/1.2 mbar)
- Output: 4-20 mA with HART® Protocol digital signal
- Isolating Diaphragm: 316L SST
- O-ring: Glass-filled PTFE (Standard)
- Sensor Fill Fluid: Silicone
- Housing Material: Polyurethane-covered Aluminum
- Conduit Entry Size: ½-14 NPT
- Display: LCD for Aluminum Housing
- Weight: 6.0 lb (2.7 kg) without options, 4 kg total
- Shipping Weight: 6 kg
Additional Information
The Rosemount 3051C smart pressure transmitter offers multiple output options including 4-20mA or 1-5VDC with HART protocol, Profibus, or FOUNDATION fieldbus. Its versatile configuration makes it suitable for any application.
Key Features
- Safety Certified to IEC 61508
- Static pressure option up to 6,092 psi (420 bar)
- Process Pressure and Sensor Temperature Alerts
- User configurable alarm and saturation values
- Adjustable low flow cut-off
Pressure Range Specifications
| Rosemount 3051CD | Rosemount 3051CG | Rosemount 3051CA |
|---|---|---|
| -3 to 3 inH2O/0.1 inH2O | Not present | Not present |
| -25 to 25 inH2O/0.5 inH2O | -25 to 25 inH2O/0.5 inH2O | 0 to 30 psia/0.3 psia |
| -250 to 250 inH2O/2.5 inH2O | -250 to 250 inH2O/2.5 inH2O | 0 to 150 psia/1.5 psia |
| -1000 to 1000 inH2O/10 inH2O | -407 to 1000 inH2O/10 inH2O | 0 to 800 psia/8 psia |
| -300 to 300 psi/3 psi | -14.7 to 300 psi/3 psi | 0 to 4000 psia/40 psia |
| -2000 to 2000 psi/20 psi | -14.7 to 2000 psi/20 psi | Not present |
Output Options
| Code | Output |
|---|---|
| A | 4-20mA, with HART protocol digital signal |
| M | 1-5Vdc, with HART protocol digital signal |
| F | FF fieldbus |
| W | profibus |
Common Models
3051CG1A02A1AB1H2L4M5
3051CD0A02A1AB3H2L4M5E5
3051CG2A02A1AB1H2L4M5
3051CD1A02A1AB3H2L4M5E5
3051CG3A02A1AB1H2L4M5
3051CD2A02A1AB3H2L4M5E5
3051CG4A02A1AB1H2L4M5
3051CD3A02A1AB3H2L4M5E5
3051CG5A02A1AB1H2L4M5
3051CD4A02A1AB3H2L4M5E5
Our Advantages
- Competitive pricing and fast delivery
- Extensive industry experience
- Highly trained technical staff
- Own warehouse facilities
- Strong manufacturer relationships
- Flexible, customized service
- Cost-effective global shipping solutions
Frequently Asked Questions
Q: Are your products new and original?
A: Yes, all products are brand new and original.
Q: What is the warranty period?
A: We provide a one-year warranty on all products.
Q: What certificates do you provide?
A: Available certificates vary by product. Please consult our sales team for specific details.
Q: What payment methods do you accept?
A: We accept T/T, Alipay, PayPal in EUR, USD, and RMB.
Q: What are your shipping options?
A: We ship worldwide via DHL, UPS, FedEx, TNT and various postal services.
Product Range
Transmitters, Safety barriers, Flow meters, Probes, Sensors, Transducers, Valves, Analysis meters, Positioners, Actuators, and more.
