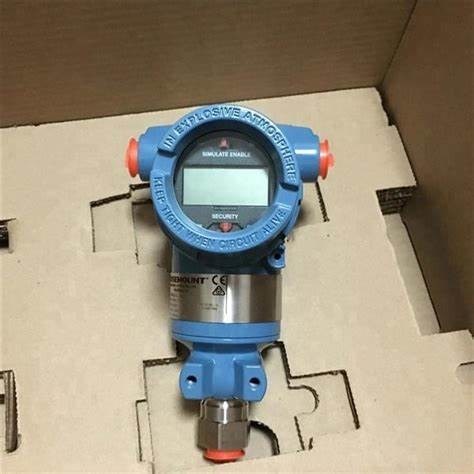

Emerson 3051TG In Line Rosemount 3051 DP Transmitter 3051TG5A2B21AB4
|
Emerson 3051TG In Line Rosemount 3051 DP Transmitter 3051TG5A2B21AB4
| Place of Origin | Singapore |
| Brand Name | Emerson Rosemount |
| Certification | ROHS |
| Model Number | 3051TG5A2B21AB4 |
Product Details
Origin:
Singapore
Model:
3051TG5A2B21AB4
Total Performance:
±0.15%
Calibrated Spans:
0.3 To 10000 Psi
Installed Five-year Stability:
0.125%
Range:
0-0.3 To 0-10,000 Psi
1-5: +/-0.075% Of Span:
1-5: +/-0.075% Of Span
Power:
4-20 MA: 10.5-55 V Dc With No Load Low Power: 6-12 V Dc With No Load
Materials:
Sensor Wetted Parts: SST, Hastelloy, Monel, Tantalum, Gold Plated SS, Gold Plated Monel
Mounting:
Coplanar And Traditional Flanges And Adapters: Cadmium And Nickel-plated CS, 316 SST
Highlight:
In Line Rosemount 3051 DP Transmitter
,689 47 bar Rosemount 3051 DP Transmitter
,Rosemount dp type pressure transmitter
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
carton
Delivery Time
on request
Payment Terms
T/T
Supply Ability
1~1000pcs
Product Description
Emerson 3051TG In Line Rosemount 3051 DP Transmitter 3051TG5A2B21AB4
Product Description
The Emerson Rosemount 3051TG In-Line Pressure Transmitter (Model 3051TG5A2B21AB4) is a high-performance gauge pressure transmitter designed for industrial applications requiring precise pressure measurement.
Technical Specifications
| Manufacturer | Rosemount |
|---|---|
| Product Number | 3051TG5A2B21AB4 |
| Product Type | In-Line Pressure Transmitter |
| Pressure Type | G = Gage |
| Pressure Range | 5 = -14.7 to 10000 psi (-1,01 to 689,47 bar) |
| Transmitter Output | A = (4) 4-20 mA with digital signal based on HART® Protocol |
| Process Connection Style | 2A |
| Isolating Diaphragm | 316L SST |
| Process Connection Wetted Parts Material | 316L SST |
| Sensor Fill Fluid | 1 = Silicone |
| Housing Material | Aluminum |
| Conduit Entry Size | ½-14 NPT |
| Mounting Bracket | B4 = Bracket for 2-in. pipe or panel mounting, all SST |
| Weight | 1.9 Kg |
Key Features
- Manufactured by Rosemount for reliable performance
- Calibrated spans from 0.3 to 10000 psi
- High accuracy up to 0.04% (optional)
- Total performance of ±0.15%
- Installed five-year stability of 0.125%
- Unmatched dynamic performance
- Optional PlantWeb functionality to increase plant productivity
- Responds up to eight times faster than typical pressure transmitters
Additional Benefits
- HART compatible for easy configuration and calibration
- 316 stainless steel wetted materials for durability in most process applications
- Local display option for easy field measurements
Compatible Models
| 3051CG1A02A1AB1H2L4M5 | 3051CD0A02A1AB3H2L4M5E5 |
| 3051CG2A02A1AB1H2L4M5 | 3051CD1A02A1AB3H2L4M5E5 |
| 3051CG3A02A1AB1H2L4M5 | 3051CD2A02A1AB3H2L4M5E5 |
| 3051CG4A02A1AB1H2L4M5 | 3051CD3A02A1AB3H2L4M5E5 |
| 3051CG5A02A1AB1H2L4M5 | 3051CD4A02A1AB3H2L4M5E5 |
| 051CG1A02A1AB3H2L4M5 | 3051CD5A02A1AB3H2L4M5E5 |
