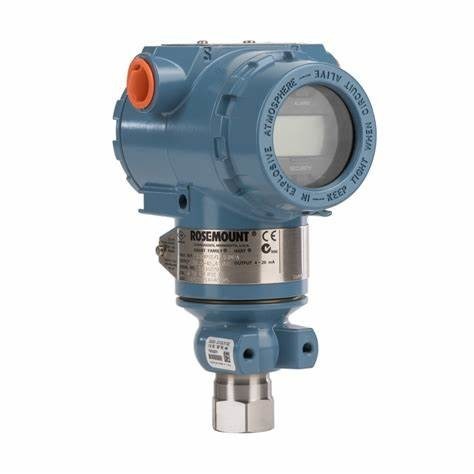

3051TG In Line Emerson Rosemount Pressure Transmitter 3051TG4A2B21AB4I5M5
|
3051TG In Line Emerson Rosemount Pressure Transmitter 3051TG4A2B21AB4I5M5
| Place of Origin | Singapore |
| Brand Name | Emerson Rosemount |
| Certification | ROHS |
| Model Number | 3051TG4A2B21AB4I5M5 |
Product Details
Origin:
Singapore
Model:
3051TG4A2B21AB4I5M5
Total Performance:
±0.15%
Calibrated Spans:
0.3 To 10000 Psi
Installed Five-year Stability:
0.125%
Range:
0-0.3 To 0-10,000 Psi
1-5: +/-0.075% Of Span:
1-5: +/-0.075% Of Span
Power:
4-20 MA: 10.5-55 V Dc With No Load Low Power: 6-12 V Dc With No Load
Materials:
Sensor Wetted Parts: SST, Hastelloy, Monel, Tantalum, Gold Plated SS, Gold Plated Monel
Mounting:
Coplanar And Traditional Flanges And Adapters: Cadmium And Nickel-plated CS, 316 SST
Highlight:
In Line Emerson Rosemount Pressure Transmitter
,3051TG Emerson Rosemount Pressure Transmitter
,Rosemount 3051tg
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
carton
Delivery Time
on request
Payment Terms
T/T
Supply Ability
1~1000pcs
Product Description
3051TG In Line Emerson Rosemount Pressure Transmitter 3051TG4A2B21AB4I5M5
Product Description
Manufacturer: Rosemount
Product No.: 3051TG4A2B21AB4I5M5
Product No.: 3051TG4A2B21AB4I5M5
Technical Specifications
| Feature | Specification |
|---|---|
| Product type | Pressure Transmitter |
| Pressure type | G = Gage |
| Pressure range | 4 = -14.7 to 4000 psi (-1,01 to 275,79 bar) |
| Transmitter output | A = 4-20 mA with digital signal based on HART Protocol |
| Process connection style | 2B = 1/2-14 NPT female (range 1-5 only) |
| Isolating diaphragm | 2 = 316L SST, Process connection wetted parts material = 316L SST |
| Sensor fill fluid | 1 = Silicone |
| Housing material | A = Aluminum, Conduit entry size = 1/2-14 NPT |
| Mounting bracket | B4 = Bracket for 2-in. pipe or panel mounting, all SST |
| Product certifications | E5 = FM Intrinsically Safe, Nonincendive |
| Configuration buttons | D4 = Analog zero and span |
| Display and interface options | M5 = LCD display |
| Conduit plug | DO = 316 SST conduit plug |
| Shipping Weight | 6.5Kg |
Additional Information
Rosemount 3051T In-Line Pressure Transmitters are the industry standard for gage and absolute pressure measurement. The in-line, compact design allows the transmitter to be connected directly to a process for quick, easy and cost effective installation.
Features & Benefits
- HART compatible for easy configuration and calibration
- Comes standard with 316 stainless steel wetted materials for durability in most process applications
- Local display option for easy field measurements
Key Features of Rosemount 3051TG Gauge Pressure Transmitter
- Manufactured by Rosemount
- Calibrated spans from 0.3 to 10000 psi
- Up 0.04% accuracy (optional)
- Total performance of ±0.15%
- Installed five-year stability of 0.125%
- Unmatched Dynamic Performance
- Optional PlantWeb Functionality to increase plant productivity
- Responds up to eight times faster than the typical pressure transmitter
Common Models
| 3051CG1A02A1AB1H2L4M5, | 3051CD0A02A1AB3H2L4M5E5, |
| 3051CG2A02A1AB1H2L4M5, | 3051CD1A02A1AB3H2L4M5E5, |
| 3051CG3A02A1AB1H2L4M5, | 3051CD2A02A1AB3H2L4M5E5, |
| 3051CG4A02A1AB1H2L4M5, | 3051CD3A02A1AB3H2L4M5E5, |
| 3051CG5A02A1AB1H2L4M5, | 3051CD4A02A1AB3H2L4M5E5, |
| 051CG1A02A1AB3H2L4M5, | 3051CD5A02A1AB3H2L4M5E5, |
