Emerson Rosemount Pressure Transmitter
>

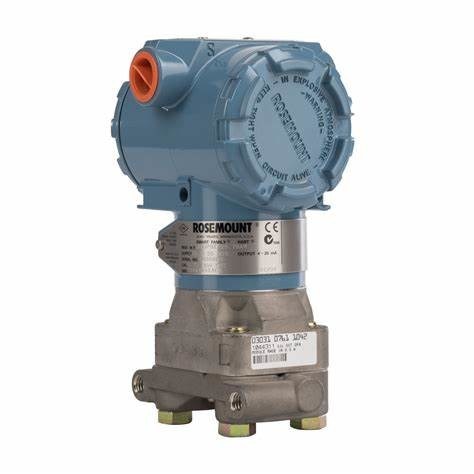

3051C Coplanar Emerson Rosemount Pressure Transmitter 3051CD3A22A1AB4M5Q4
|
3051C Coplanar Emerson Rosemount Pressure Transmitter 3051CD3A22A1AB4M5Q4
| Place of Origin | Singapore |
| Brand Name | Emerson Rosemount |
| Certification | ROHS |
| Model Number | 3051CD3A22A1AB4M5Q4 |
Product Details
Product Name:
Coplanar Pressure Transmitter
Origin:
Singapore
Model:
3051CD3A22A1AB4M5Q4
Sensor Fill Fluid:
Silicone
Housing Material:
Aluminium
Flange Material:
316L SST
Display And Interface Options:
LCD Display
Warranty:
Up To 15-year Limited Warranty
Rangedown:
Up To 150:1
Wireless Range:
Internal Antenna (225 M)
Power Module Life:
Up To 10-year Life, Field Replaceable (order Separately)
Highlight:
Coplanar Emerson Rosemount Pressure Transmitter
,3051C Emerson Rosemount Pressure Transmitter
,ROHS rosemount pressure transmitter 3051
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
carton
Delivery Time
on request
Payment Terms
T/T
Supply Ability
1~1000pcs
Product Description
3051C Coplanar Emerson Rosemount Pressure Transmitter 3051CD3A22A1AB4M5Q4
Product Description
3051CD3A22A1AB4M5Q4 Rosemount 3051C Coplanar Pressure Transmitter
Key Features
- Manufacturer: Rosemount
- Transmitter Type: Coplanar pressure transmitter
- Measurement Type: Differential
- Pressure Ranges: -250 to 250 inH2O/2.5 inH2O (-623 to 623 mbar/6.2 mbar)
- Output: 4-20 mA with digital signal based on HART Protocol
- Materials: SST process flange, 316L SST isolating diaphragm, glass-filled PTFE O-ring
- Sensor Fill Fluid: Silicone
- Housing Material: Polyurethane-covered aluminum
- Conduit Entry Size: 1/2-14 NPT
- Display: LCD with Local Operator Interface
- Calibration: Includes Calibration Certificate
- Weight: 2.7 kg (transmitter), 8 kg (shipping)
Specifications
| Update Rate | 1 sec. to 60 min., user selectable |
| Power Module Life | Up to 10-year life, field replaceable (order separately) |
| Wireless Range | Internal antenna (225 m) |
Common Models
| 3051CG1A02A1AB1H2L4M5 | 3051CD0A02A1AB3H2L4M5E5 |
| 3051CG2A02A1AB1H2L4M5 | 3051CD1A02A1AB3H2L4M5E5 |
| 3051CG3A02A1AB1H2L4M5 | 3051CD2A02A1AB3H2L4M5E5 |
| 3051CG4A02A1AB1H2L4M5 | 3051CD3A02A1AB3H2L4M5E5 |
| 3051CG5A02A1AB1H2L4M5 | 3051CD4A02A1AB3H2L4M5E5 |
| 051CG1A02A1AB3H2L4M5 | 3051CD5A02A1AB3H2L4M5E5 |
| 3051CG2A02A1AB3H2L4M5 | 3051CD0A02A1AB3H2L4M5I5 |
| 3051CG3A02A1AB3H2L4M5 | 3051CD1A02A1AB3H2L4M5I5 |
| 3051CG4A02A1AB3H2L4M5 | 3051CD2A02A1AB3H2L4M5I5 |
| 3051CG5A02A1AB3H2L4M5 | 3051CD3A02A1AB3H2L4M5I5 |
