8800p Al2O3 Trace Teledyne Analytical Instruments Gas Moisture Analyzer
|
8800p Al2O3 Trace Teledyne Analytical Instruments Gas Moisture Analyzer
| Place of Origin | Teledyne |
| Brand Name | Teledyne |
| Certification | ROHS |
| Model Number | 8800P |
Product Details
Origin:
USA
Warranty:
1 Year
Manufacturer:
Teledyne
Products Name:
Teledyne Trace Moisture Analyzer
Model:
8800P
Sensor Type:
High Capacitance Al2O3 (HTF)
Range:
Standard: 25 Psi (2 Bar) Max: 100 Psi (6.9 Bar)
Readouts:
Dewpoint In °F And °C, Ppmv, HH2o/m3, Lbs H2o/mmscf
Accuracy:
± 5.5°F (± 3°C)
Repeatability:
± 0.9°F (± 0.5°C)
Capacitance:
15 NF To 200 NF
Highlight:
Al2O3 Teledyne Analytical Instruments
,8800p Teledyne Analytical Instruments
,Teledyne gas moisture analyzer
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
negotiable
Packaging Details
carton
Delivery Time
on request
Payment Terms
T/T
Supply Ability
1~1000pcs
Product Description
8800p Al2O3 Trace Teledyne Analytical Instruments Gas Moisture Analyzer
Product Description
Teledyne Trace Moisture Analyzer 8800P
Part Number: 8800P
Product Name: Trace Moisture Analyzer
Origin: USA
Manufacturer: Teledyne
Specification

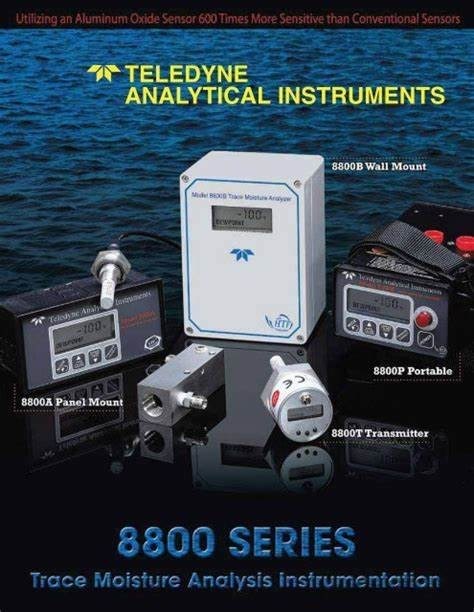

The 8800 Series Single Point Trace Moisture Analyzers are provided in four compact, reliable designs with the ability to detect moisture from -148°F (-100°C) to ambient dew point levels of +68°F (+20°C) on either a continuous or spot checking basis.
- 8800A - Flush Mount DIN enclosure with connections made via a pluggable screw terminal block
- 8800B - Wall Mount N4X (IP65) enclosure with connections made with 3 bottom watertight fittings
- 8800P - Portable battery operated design in the Standard, I/O and I/S versions (I/S is suitable for hazardous areas)
- 8800T - Low-cost, loop powered 4-20 mA transmitter design with built-in LCD display
Features
- Readout available in (5) engineering units; °C, °F, ppm, lbs. H2O/mm scf & g H2O/m3
- Scalable signal outputs (0-20 mADC & 4-20 mADC)
- Built-in LCD with backlight, 3.5 digits and custom legends for units / mode
- Din box enclosure: (cut-out dimensions of 137 mm W x 67 mm H)
- (4) front panel membrane tactile push button controls, all settings stored in EEPROM
- (2) programmable alarm relays w/programmable variable hysteresis rated 10A @ 240V
- Power requirements of 100-240 VAC, 50 or 60 Hz
- Operating temperature of electronics: -10 to 50° C
- Class I & II, Division 1, Groups A, B, C, D, E, F & G (when used with optional safety barriers)
- High capacitance aluminum oxide (Al2O3) sensor using Hyper Thin Film (HTF)™ Technology
- (2) meters of sensor interconnection cable included
- Power cord
- Instruction manual (one copy per analyzer ordered)
Oxygen Sensor Specifications
| Model | Part Number | Description | Application |
|---|---|---|---|
| A-2C | C6689-A2C | Used for trace O2 measurements in CO2 containing backgrounds (0.1-100% CO2). CO2 must be present. | Use where acid gases are present (CO2, HCl, HCN, etc). CO2 must be present. |
| A-2CXL | B74033-A2CXL | Specially qualified A2C sensor to operate in XL model analyzers. Low range limit is 0-1 ppm. | Use where acid gases are present (CO2, HCl, HCN, etc). CO2 must be present. |
| A-5 | C6689-A5 | Intermittent or continuous monitoring of percent O2 in gas mixtures containing 0-100% CO2. 90% response is time is 45 seconds. | Has more tolerance to exposure to air than A-3. No restrictions on CO2 concentration. |
| B-1 | C6689-B1 | General purpose percent oxygen analysis where fast response is desired (90% in less than 7 seconds). | Use B-3 or C-3 where longer life is required and response time is relatively unimportant. May be used to spot check flue gas. |
| B-2C | C6689-B2C | General purpose trace O2 analysis for use in inert gas and hydrocarbon streams. Low range limit is 0-10 ppm. | May be used in CO2 free gas streams containing highly mobile gases such as H2, He and ethylene. |
| INSTA TRACE | B71875 | Special patented construction provides rapid recovery, during initial cell installation, to low PPM levels by reducing the recovery period from several hours to just minutes. Low range limit is 0-10 ppm. | Used for trace O2 analysis in inert gas and hydrocarbon streams. |
Common Models
3000MA
3010MA
3110(311D)
311TC
3000TA
311
311XL
311TCXL
311PC
3190
320P
3010PAC
4020
8800A
INSTATRANS 3001
INSTATRANS-XD
3290
A-2C
L-2C
B-2CXL
A-5
B-2C
B-37937
UFO-130-2
C73870
C65098A
D67472REV8
GB300
INSTA TRACE (B71875)
R-22A
