240V 8800A Al2O3 Teledyne Analytical Instruments Trace Moisture
|
240V 8800A Al2O3 Teledyne Analytical Instruments Trace Moisture
| Place of Origin | Teledyne |
| Brand Name | Teledyne |
| Certification | ROHS |
| Model Number | 8800A |
Product Details
Origin:
USA
Warranty:
1 Year
Manufacturer:
Teledyne
Products Name:
Teledyne Trace Moisture Analyzer
Model:
8800A
Response Time:
45 Seconds
Range By Sensor Type::
XTR-100 -148° To 68°F (-100° To 20°C)
Pressure Operating Range:
Range By Sensor Type:
Accuracy:
± 5.5°F (± 3°C)
Repeatability:
± 0.9°F (± 0.5°C)
Highlight:
240V Teledyne Analytical Instruments
,Trace Moisture Teledyne Analytical Instruments
,Al2O3 teledyne moisture analyzer
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
negotiable
Packaging Details
carton
Delivery Time
on request
Payment Terms
T/T
Supply Ability
1~1000pcs
Product Description

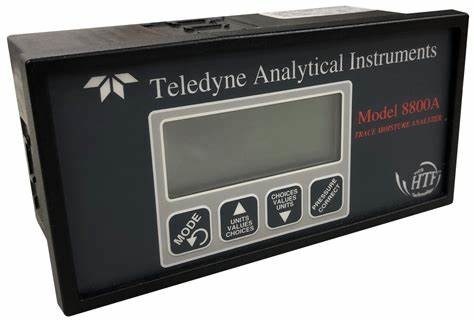

240V 8800A Al2O3 Teledyne Analytical Instruments Trace Moisture Analyzer
Teledyne Trace Moisture Analyzer 8800A
Part Number: 8800A
Product Name: Trace Moisture Analyzer
Origin: USA
Manufacturer: Teledyne
Part Number: 8800A
Product Name: Trace Moisture Analyzer
Origin: USA
Manufacturer: Teledyne
Specification
The 8800 series uses field proven aluminum oxide (Al2O3) sensing technology to accurately detect trace moisture on either a continuous or spot checking basis. All Al2O3 sensors share the same basic operating principle: the capacitance measured between the sensor's aluminum core and gold film deposited on the oxide layer varies with the water content. The 8800 series moisture sensor employs unique Hyper Thin Film (HTF) technology, which offers three major structural improvements in Al2O3 sensor design. These structural changes provide increased sensitivity, greater stability and quicker response time when compared to conventional aluminum oxide sensors.
Features
- Readout available in 5 engineering units: °C, °F, ppm, lbs. H2O/mm scf & g H2O/m3
- Scalable signal outputs (0-20 mADC & 4-20 mADC)
- Built-in LCD with backlight, 3.5 digits and custom legends for units/mode
- Din box enclosure: (cut-out dimensions of 137 mm W x 67 mm H)
- 4 front panel membrane tactile push button controls, all settings stored in EEPROM
- 2 programmable alarm relays with programmable variable hysteresis rated 10A @ 240V
- Power requirements: 100-240 VAC, 50 or 60 Hz
- Operating temperature of electronics: -10 to 50°C
- Class I & II, Division 1, Groups A, B, C, D, E, F & G (when used with optional safety barriers)
- High capacitance aluminum oxide (Al2O3) sensor using Hyper Thin Film (HTF)™ Technology
- 2 meters of sensor interconnection cable included (longer cables available)
- Power cord included
- Instruction manual (one copy per analyzer ordered)
Oxygen Sensor Specifications
| Model | Part Number | Description | Application |
|---|---|---|---|
| A-2C | C6689-A2C | Used for trace O2 measurements in CO2 containing backgrounds (0.1-100% CO2). CO2 must be present. | Use where acid gases are present (CO2, HCl, HCN, etc). CO2 must be present. |
| A-2CXL | B74033-A2CXL | Specially qualified A2C sensor to operate in XL model analyzers. Low range limit is 0-1 ppm. | Use where acid gases are present (CO2, HCl, HCN, etc). CO2 must be present. |
| A-5 | C6689-A5 | Intermittent or continuous monitoring of percent O2 in gas mixtures containing 0-100% CO2. 90% response time is 45 seconds. | Has more tolerance to exposure to air than A-3. No restrictions on CO2 concentration. |
| B-1 | C6689-B1 | General purpose percent oxygen analysis where fast response is desired (90% in less than 7 seconds). | Use B-3 or C-3 where longer life is required and response time is relatively unimportant. May be used to spot check flue gas. |
| B-2C | C6689-B2C | General purpose trace O2 analysis for use in inert gas and hydrocarbon streams. Low range limit is 0-10 ppm. | May be used in CO2 free gas streams containing highly mobile gases such as H2, He and ethylene. |
| INSTA TRACE | B71875 | Special patented construction provides rapid recovery to low PPM levels by reducing the recovery period from several hours to just minutes. Low range limit is 0-10 ppm. | Used for trace O2 analysis in inert gas and hydrocarbon streams. |
| B-3 | C6689-B3 | Percent O2 analysis, best compromise between long life and fast response. | May be used to spot check flue gas. |
| C-3 | C6689-C3 | Percent O2 measurements where maximum cell life is desired (high O2 applications). 90% response time is 30 seconds. | Expected life in air is 18 months. |
