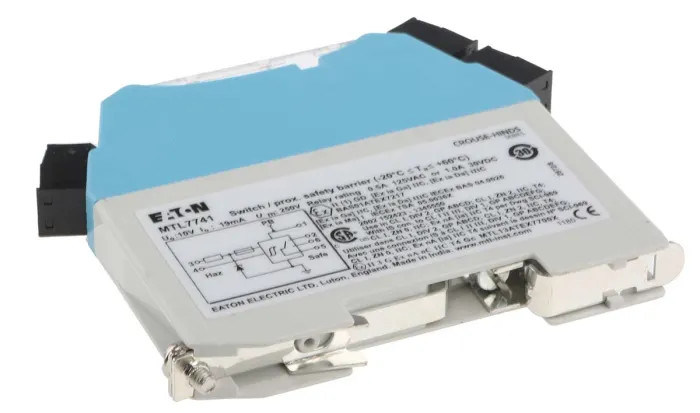

Eaton MTL7741 Intrinsic Safety Barrier for ATEX Digital Input 24V DC Output
|
Eaton MTL7741 Intrinsic Safety Barrier for ATEX Digital Input 24V DC Output
| Place of Origin | USA |
| Brand Name | MTL |
| Certification | Rohs |
| Model Number | MTL7741 |
Product Details
Color:
Blue
Manufacture:
MTL
Shipping Weight:
1.1 Kg
Output Voltage:
24V DC
Dimensions:
2 Cm X 10.98 Cm X 12.36 Cm
Certifications:
ATEX, IECEx, UL, CSA
Highlight:
ATEX MTL7741
,Eaton MTL7741 Intrinsic Safety Barrier
,24V DC Output MTL7741
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Original packing
Delivery Time
On request
Payment Terms
T/T
Supply Ability
5000pcs/month
Product Description
Eaton MTL7741 Intrinsic Safety Barrier for ATEX Digital Input 24V DC Output
MTL7741 | Instruments | Proximity Detector Interface
The MTL7741 is a 1 Channel Zener Barrier serving as an Intrinsic Safety Barrier with Digital Input for ATEX applications. All MTL7700 series Zener barriers follow consistent design principles, with each channel featuring a secondary pulse detecting Zener or forward connecting diode and a reliable terminating resistor.
In case of electrical faults in the safety zone, the diode limits hazardous area voltage while the resistor provides current limiting. A fuse protects the diode, and a two-stage voltage limiting function ensures continuous protection. Certified "ia" for all zones and "IIC" for all explosive atmospheres.
Common Applications
| Type | Application | Main Safety Barriers |
|---|---|---|
| Analog input (low level) | RTD temperature detector, thermocouple, AC sensor | MTL7756ac, MTL7755ac, MTL7760ac |
| Analog input (high level) | Transmitter, 2-wire, 4/20mA | MTL7706+, MTL7787+, MTL7787P+, MTL7788+ |
| Digital (switch) input | Switch/proximity switch | MTL7787+, MTL7787P+, MTL7789+, MTL7741, MTL7742, MTL7743, MTL7744, MTL7745 |
| Digital (Switching) Outputs | Solenoids, Alarms, Light Emitting Diodes | MTL7728+, MTL7707+, MTL7728P+, MTL7729P+, MTL7787+, MTL7787P+ |
Product Specifications
Manufacturer:
MTL Instruments
Product type:
Vibration Transducer Interface
Product no:
MTL7741
