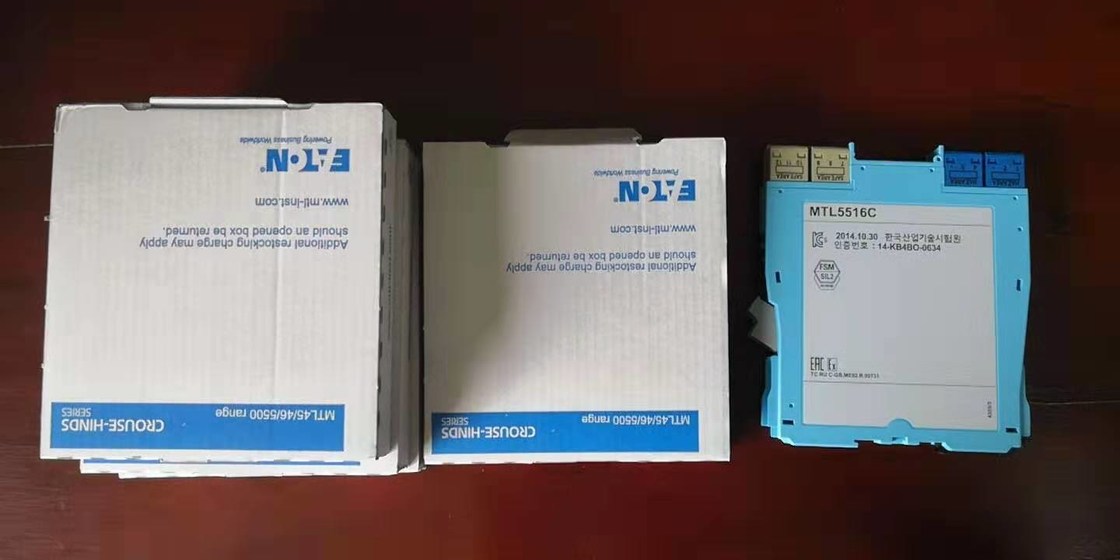

24V 35mA MTL5516C MTL Safety Barrier Instruments Switch Proximity Detector Interface
|
24V 35mA MTL5516C MTL Safety Barrier Instruments Switch Proximity Detector Interface
| Place of Origin | UK |
| Brand Name | MTL |
| Certification | ROHS |
| Model Number | MTL5516C |
Product Details
Number Of Channels:
Two
Location Of Switches:
Zone 0, IIC, T6 Hazardous Area
Location Of Proximity Detector:
Zone 0, IIC, T4–6 Hazardous Area If Suitably Certified
Voltage Applied To Sensor:
7 To 9V Dc From 1kΩ ±10%
Safe-area Output:
Two Single-pole Relays With Changeover Contacts
Maximum Current Consumption:
35mA At 24V
Power Dissipation Within Unit:
0.84W At 24V
Highlight:
35mA MTL Safety Barrier
,MTL5516C MTL Safety Barrier
,MTL5516C
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
carton
Delivery Time
on request
Payment Terms
T/T
Supply Ability
100+pc+on stock
Product Description
24V 35mA MTL5516C MTL Safety Barrier Instruments Switch Proximity Detector Interface
MTL5516C MTL Instruments Switch/Proximity Detector Interface
The MTLx516/C enable two safe-area loads to be controlled by a switch or proximity detector located in a hazardous-area. When selected, open or short circuit conditions in the field wiring are detected by the linefault-detect (LFD) facility and also indicated on the top of the module. Phase reversal for each channel is selected by a switch on the side of the module and output is provided by changeover relay contacts.
Our Advantages
- Best possible prices and delivery time
- Long time experience in the field
- Well trained staff
- Own warehouse facilities
- Best relationships with branch office of manufacture
- Flexible and individual service for you
- Cheap and safe forwarder for shipments (air)
Frequently Asked Questions
Q: Does your goods are new and original?
A: Yes, they are new and original.
Q: How long warranty?
A: One-year warranty.
Q: Does any certificates can be provided?
A: Yes, it depends on what product you request, please check details with our sales.
Q: Varied payment methods.
A: We adopt T/T, alipay and paypal and Currency in EURO,USD,RMB
Q: SHIPPING:
A: We can shipping all over the world.via DHL,UPS,Fedex,TNT and IPS,PDE,BRE,KARAPOST etc.
Our Product Range
Transmitter, Safety barries, Flow meters, Probe, Sensor, Transducer. Valves, Analysis meter, Positioner, Acuator, etc.
