OEM MTL5544D MTL Barriers Instruments Repeater Power Supply
  • OEM MTL5544D MTL Barriers Instruments Repeater Power Supply
  • OEM MTL5544D MTL Barriers Instruments Repeater Power Supply
  • OEM MTL5544D MTL Barriers Instruments Repeater Power Supply

OEM MTL5544D MTL Barriers Instruments Repeater Power Supply

Place of Origin UK
Brand Name MTL
Certification ROHS
Model Number MTL5544D
Product Details
Number Of Channels:
One
Location Of Transmitter:
Zone 0, IIC, T4–6 Hazardous Area If Suitably Certified Div. 1, Group A Hazardous Location
Signal Range::
4 To 20mA
Under/over-range::
0 To 24mA
Transmitter Voltage:
16.5V At 20mA
Transfer Accuracy At 20°C:
Better Than 15µA
Response Time:
Settles To Within 10% Of Final Value Within 50µs
Communications Supported:
HART (terminals 1 & 2, Output Ch 1 Only)
Highlight:

MTL5544D mtl barriers

,

OEM mtl barriers

,

MTL5544D

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
carton
Delivery Time
on request
Payment Terms
T/T
Supply Ability
100+pc+on stock
Product Description

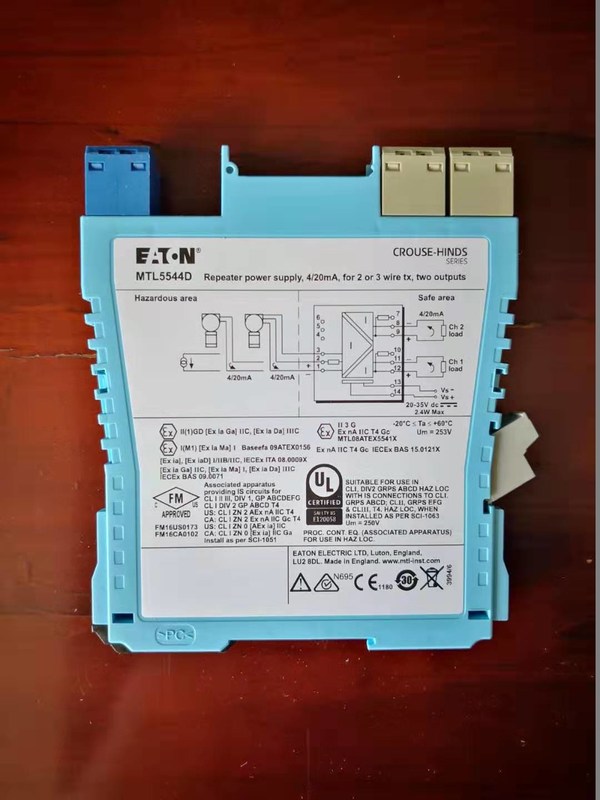

MTL5544D MTL Instruments Repeater Power Supply

The MTLx544D provides a fully-floating DC supply for energizing conventional 2- or 3-wire 4/20mA transmitters located in hazardous areas. It repeats the current in other circuits to drive two safe-area loads. For HART 2-wire transmitters, the unit enables bi-directional transmission of digital communication signals superimposed on the 4/20mA loop current. Separately powered current sources (such as 4-wire transmitters) can be connected but will not support HART communication.
