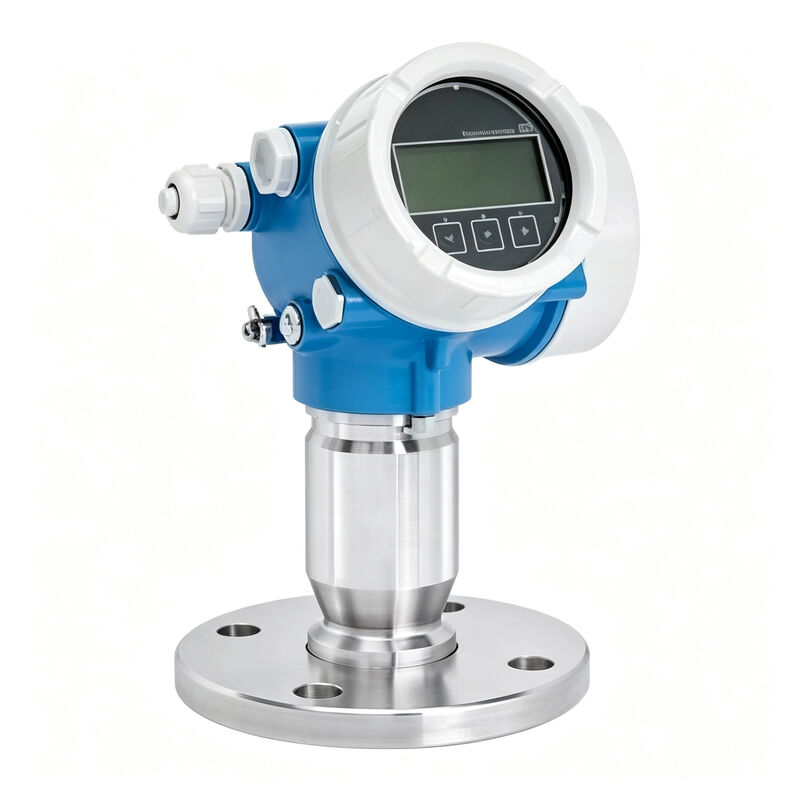

FMR62-AAACCAGNF5CHK+IJZ1 E+H Radar Measurement Micropilot FMR62
| Place of Origin | DE |
| Brand Name | Endress Hauser |
| Certification | Rohs |
| Model Number | FMR62-AAACCAGNF5CHK+IJZ |
Product Details
Warranty::
1 Year
Ingress Protection::
IP66/67, NEMA 4X
Material::
PE100
Long Term Stability::
0.2 % Of URL/year
Cable Entry Housing::
NPT
Single Installation::
-20 °C ... 60 °C (-4 °F ... 140 °F)
Built In Depth::
120mm
Application::
Food, Beverage, Dairies, Breweries,etc
Highlight:
80GHz Radar Micropilot FMR62
,IP66/67 Protection Radar Measurement Device
,80m Measurement Distance E+H Radar Sensor
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
Negotiable
Packaging Details
Original packing
Delivery Time
on request
Payment Terms
T/T
Supply Ability
50PCS/MONTH
Product Description
FMR62-AAACCAGNF5CHK+IJZ1 E+H Radar Measurement Micropilot FMR62
Product Overview
Place of Origin: DE
Brand Name: Endress Hauser
Certification: Rohs
Model Number: FMR62-AAACCAGNF5CHK+IJZ
Adaption Cable: Endress Hauser
Warranty: 1 Year
Ingress Protection: IP66/67, NEMA 4X
Material: PE100
Long Term Stability: 0.2 % Of URL/year
Cable Entry Housing: NPT
Single Installation: -20 °C ... 60 °C (-4 °F ... 140 °F)
Built In Depth: 120mm
Application: Food, Beverage, Dairies, Breweries, etc
Product Highlights
Micropilot FMR62 radar measurement
FMR62 radar measurement
E+H radar measurement Micropilot FMR62
Technical Specifications
Accuracy
±1 mm (0.04 in)
Process Temperature
-40…+200 °C (-40…+392 °F)
Process Pressure / Max. Overpressure Limit
Vacuum…+25 bar (Vacuum…+362.6 psi)
Max. Measurement Distance
80 m (262 ft)
Main Wetted Parts
PTFE or PEEK antenna, 316L threads, PTFE cladded flanges
Field of Application
Micropilot FMR62 is the first 80GHz radar developed according to the international functional safety directive IEC 61508. For applications in aggressive liquids, FMR62 offers extraordinary advantages with its completely PTFE-filled and flush-mounted antenna. The integrated PEEK antenna allows very small process connections. The FMR62 free space radar offers maximum reliability due to improved algorithms and small beam angle. It also possesses the smart sensor functionality Heartbeat Technology.
Micropilot FMR62 is suited for free space applications up to 80m and offers high beam focusing for vessels with many internal fittings.
- Process connections: Threads or flanges
- Temperature: -40 to +200°C (-40 to +392°F)
- Pressure: -1 to +25bar (-14.5 to +362.6psi)
- Maximum measuring range: 80m (262ft)
- Accuracy: ±1mm (0.04in)
- W-band: 80GHz
- International explosion protection certificates, overfill prevention WHG, SIL, marine approvals, 5-point linearity protocol
