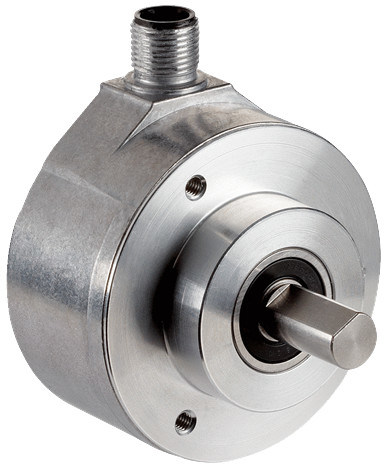

4.5VDC SICK Sensor Encoder AFM60B-S4AC004096 IP65 Enclosure Rating
|
4.5VDC SICK Sensor Encoder AFM60B-S4AC004096 IP65 Enclosure Rating
| Place of Origin | Germany |
| Brand Name | SICK Sensors |
| Model Number | AFM60B-S4AC004096 |
Product Details
Manufacturer:
SICK Sensors
Absolute Encoders:
AFS/AFM60 SSI
Type:
AFM60B-S4AC004096
Part Number:
1037778
Resolution:
12 Bit X 12 Bit
Operating Voltage Range:
4.5 V DC ... 32 V DC
Leading Time:
Negotiable
Shipping Weight:
1.3 Kg
Highlight:
4.5VDC SICK Sensor
,IP65 SICK Sensor
,IP65 sick encoder
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
carton
Delivery Time
on request
Supply Ability
100+pc+on stock
Product Description
4.5VDC SICK Sensor Encoder AFM60B-S4AC004096 IP65 Enclosure Rating
SICK AFM60B-S4AC004096 Encoders
Quick Details
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (shaft side), IP67 (housing side) according to IEC 60529
- Permissible relative humidity: 90% (condensation of the optical scanning not permitted)
- Working temperature range: -40°C to +100°C
- Storage temperature range: -40°C to +100°C (without package)
- Resistance to shocks: 70g, 6ms (according to EN 60068-2-27)
- Resistance to vibration: 30g, 10Hz to 2,000Hz (according to EN 60068-2-6)
Specifications
Performance
| Max. number of steps per revolution | 4,096 |
| Max. number of revolutions | 4,096 |
| Resolution power | 4,096 x 4,096 |
| Resolution | 12 bit x 12 bit |
| Error limits | ± 0.05° |
| Repeat accuracy | 0.002° |
| Measuring step | 0.01° 360° / number of steps per revolution = 0.09° |
| Initialization time | 50 ms |
| Position forming time | < 1 µs |
Interfaces
| Code type | Gray |
| Code sequence | CW/CCW parameter adjustable |
| Interface signals | Clock +, Clock -, Data +, Data |
| Clock frequency | 2 MHz |
| Set (electronic adjustment) | H-active (L=0-3V,H=4,0-Us V) |
| CW/CCW (counting sequence when turning) | L-active (L=0-1,5V, H=2,0-Us V) |
| Measuring step deviation | ±0.01° |
| Max. number of steps per revolution | 4,096 |
Electrical Data
| Connection type | Male connector, radial |
| Power consumption | 0.5W (without load) |
| Operating voltage range | 4.5 V DC to 32 V DC |
| Reverse polarity protection | Yes |
| MTTFd: mean time to dangerous failure | 250 years (EN ISO 13849-1) |
