Differential Pressure 4-20ma Temperature Sensor Transmitters Honeywell SmartLine STD720 A2AC4AS
|
Differential Pressure 4-20ma Temperature Sensor Transmitters Honeywell SmartLine STD720 A2AC4AS
| Place of Origin | China |
| Brand Name | HONEYWELL |
| Certification | ROHS |
| Model Number | STD720-A2AC4AS-1-A-AH0-11S-A-00A0-OX-0000 |
Product Details
Manufacturer:
Honeywell
Model:
STD720-A2AC4AS-1-A-AH0-11S-A-00A0-OX-0000
Material:
316 Stainless Steel
Products Name:
Differential Pressure Transmitter
Measurement Range:
URL : 400/(1000)
Max Span ::
400/(1000)
Output:
4-20mA
Supply Voltage:
10.8 To 42.4 Vdc At Terminals
Highlight:
SmartLine 4 20ma temperature sensor
,Honeywell 4 20ma temperature sensor
,Differential Pressure temperature sensor transmitter
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
carton
Delivery Time
on request
Payment Terms
T/T
Supply Ability
100+pc+on stock
Product Description

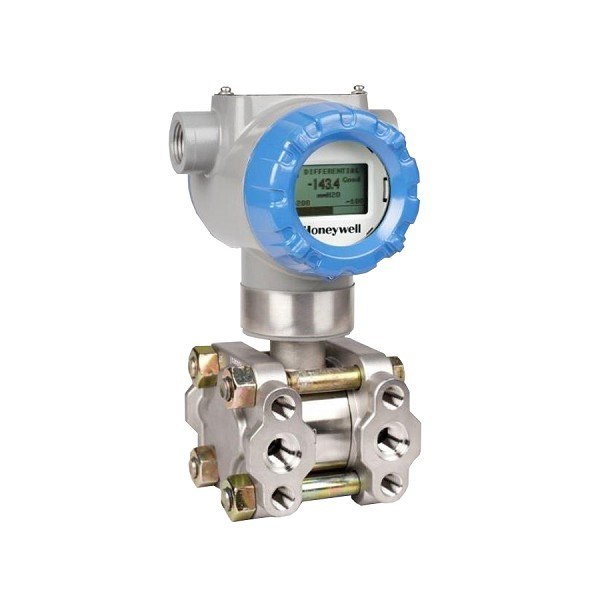

Honeywell SmartLine STD720 Differential Pressure Transmitter
Model: STD720-A2AC4AS
Key Features
- 4-20mA dc output with HART Protocol
- 316 Stainless Steel process head and diaphragm
- Silicone Oil 200 fill fluid
- 1/2" NPT female process connection
- FM explosion proof, intrinsically safe, non-incendive & dustproof
- Standard accuracy with custom calibration range
Technical Specifications
| Measurement Range | URL: 400/(1000), LRL: -400/(-1000) |
|---|---|
| Max/Min Span | 400/(1000) / 4.0 (10) |
| Units | " H2O (mbar) |
| Materials | 316 Stainless Steel (process head), 316L Stainless Steel (diaphragm), Carbon Steel (bolts/nuts) |
| Process Connection | 1/2" NPT female |
| Static Pressure | 4500 psig (315 bar) |
| Output | 4-20mA dc with HART Protocol |
| Fail Mode | High > 21.0mAdc |
| Shipping Weight | 5 kg |
Configuration Details
- Dual ended head type with standard vent
- Teflon® or PTFE (Glass Filled) gasket material
- Standard diagnostics application software
- Angle bracket mounting (carbon steel)
- Includes calibration test report & certificate of conformance
Compatible Models
STD800
STD810
STD820
STD830
STD870
STG800
STG830/STG83L
STG840/STG84L
STG870/STG87L
STG88L
STG89L
STR800
STR82D
STR83D
STR84G
STR87G
STR84A
STA800 & STA80L
STA822
STA840
STA82L
STA84L
STA87L
STF800
STF828
STF832
STF82F
STF83F
