SmartLine ST700 differential High Temp Pressure Transmitter Gauge Honeywell STG740 A1GC4A
| Place of Origin | China |
| Brand Name | HONEYWELL |
| Certification | ROHS |
| Model Number | STG740-A1GC4A-1-A-BDB-11C-B-10A0 |
Product Details
Material:
Metal
Shipping Weight:
5KG
Model:
STG740-A1GC4A-1-A-BDB-11C-B-10A0
Load Resistance:
0 To 1,440 Ohms
Maximum Allowable:
500 Psi (35 Bar)
Output:
4-20mA
Supply Voltage:
10.8 To 42.4 Vdc At Terminals
Manufacturer:
Honeywell
Highlight:
SmartLine ST700 high temp pressure transmitter
,differential high temp pressure transmitter Gauge
,ST700 differential pressure sensor honeywell
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
carton
Delivery Time
on request
Payment Terms
T/T
Supply Ability
100+pc+on stock
Product Description

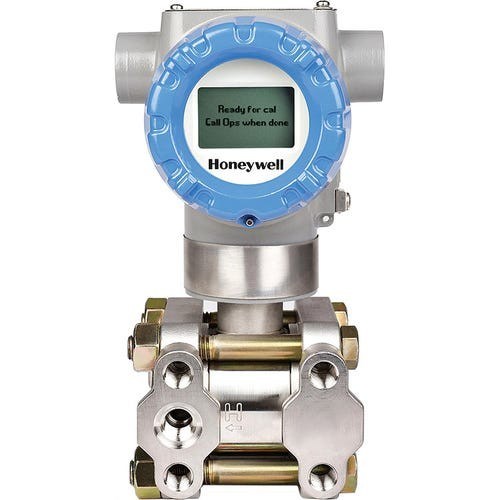

SmartLine ST700 Differential High Temp Pressure Transmitter Gauge Honeywell STG740 A1GC4A
Honeywell SmartLine ST700 Gauge Pressure Transmitters STG740-A1GC4A
The ST700 modular design accommodates a basic alphanumeric LCD display with flexible configuration options.
Basic Alphanumeric LCD Display Features
- Modular design (field installable/removable)
- 0°, 90°, 180°, & 270° position adjustments
- Configurable (HART only) and standard measurement units including Pa, KPa, MPa, KGcm², Torr, ATM, inH₂O, mH₂O, bar, mbar, inHg, ftH₂O, mmH₂O, mmHg, and psi
- 2 lines with 16 characters (4.13H x 1.83W mm)
- Square root output indication (√)
Simple LCD Display Features
- Modular design (field installable/removable)
- HART protocol support
- 0°, 90°, 180°, & 270° position adjustments
- Configurable and standard measurement units
- Flow engineering unit support
- 2 lines with 6 digits PV (9.95H x 4.20W mm) and 8 characters
- Square root output indication (√) and write protect indication
- Built-in basic device configuration through internal buttons for range/engineering unit/loop test/loop calibration/zero/span setting
Available Models
STD800 SmartLine Differential Pressure
STD810
STD820
STD830
STD870
STG800 SmartLine Gauge Pressure
STG830/STG83L
STG840/STG84L
STG870/STG87L
STG88L
STG89L
STR800 SmartLine Remote Diaphragm Seals
STR82D
STR83D
STR84G
STR87G
STR84A
STA800 & STA80L Absolute Pressure Transmitters
STA822
STA840
STA82L
STA84L
STA87L
STF800 Flange Mounted Liquid Level
STF828
STF832
STF82F
STF83F
