Honeywell ST700 Differential Pressure Temperature Transmitter 4-20ma sensor STD720 E1HC4AS
|
Honeywell ST700 Differential Pressure Temperature Transmitter 4-20ma sensor STD720 E1HC4AS
| Place of Origin | China |
| Brand Name | HONEYWELL |
| Certification | ROHS |
| Model Number | STD720-A1HC4AS-1-A-BDB-11C-B-10A0 |
Product Details
Material:
316 Stainless Steel
Products Name:
Differential Pressure Transmitter
Model:
STD720-A1HC4AS-1-A-BDB-11C-B-10A0
Measurement Range:
URL : 400/(1000)
Max Span ::
400/(1000)
Output:
4-20mA
Supply Voltage:
10.8 To 42.4 Vdc At Terminals
Manufacturer:
Honeywell
Highlight:
ST700 temperature transmitter 4 20ma
,STD720 temperature transmitter 4 20ma
,Honeywell 4 20ma temp sensor
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
carton
Delivery Time
on request
Payment Terms
T/T
Supply Ability
100+pc+on stock
Product Description

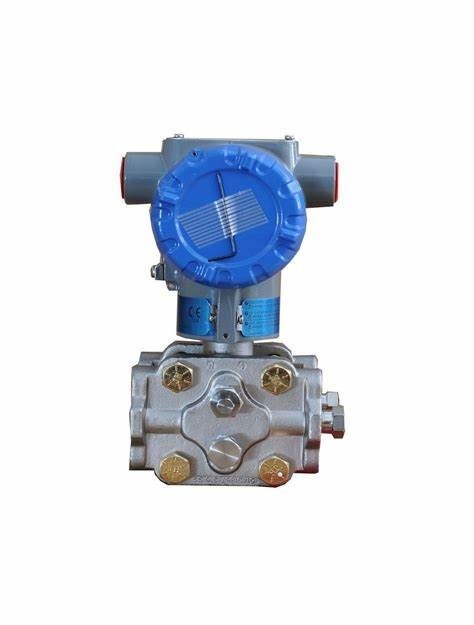

Honeywell ST700 Differential Pressure Temperature Transmitter 4-20ma sensor STD720 E1HC4AS
Product Overview
The Honeywell SmartLine ST700 Differential Pressure Transmitter (Model STD720-E1HC4AS) is a precision instrument designed for accurate differential pressure measurement in industrial applications. Featuring robust 316 stainless steel construction and HART protocol communication.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Honeywell |
| Model | STD700 |
| Measurement Range | URL: 400/(1000), LRL: -400/(-1000) |
| Max/Min Span | 400/(1000) / 4.0 (10) |
| Units | " H2O (mbar) |
| Process Head Material | 316 Stainless Steel |
| Diaphragm Material | 316L Stainless Steel |
| Fill Fluid | Silicone Oil 200 |
| Process Connection | 1/2" NPT female |
| Static Pressure | 4500 psig (315 bar) |
| Analog Output | 4-20mA dc with HART Protocol |
| Shipping Weight | 5 kg |
Configuration Details
- Head Type: Dual Ended with Standard Vent
- Gasket Material: Teflon® or PTFE (Glass Filled)
- Agency Approvals: FM Explosion proof, Intrinsically Safe, Non-incendive & Dustproof
- Transmitter Electronics: Polyester Powder Coated Aluminum
- Fail Mode: High > 21.0mAdc
- Calibration: Includes Test Report & Certificate of Conformance (F3399)
Compatible Models
- STD800 SmartLine Differential Pressure
- STD810/STD820/STD830/STD870
- STG800 SmartLine Gauge Pressure
- STG830/STG83L/STG840/STG84L
- STG870/STG87L/STG88L/STG89L
- STR800 SmartLine Remote Diaphragm Seals
- STR82D/STR83D/STR84G/STR87G/STR84A
- STA800 & STA80L Absolute Pressure Transmitters
- STA822/STA840/STA82L/STA84L/STA87L
- STF800 Flange Mounted Liquid Level
- STF828/STF832/STF82F/STF83F
