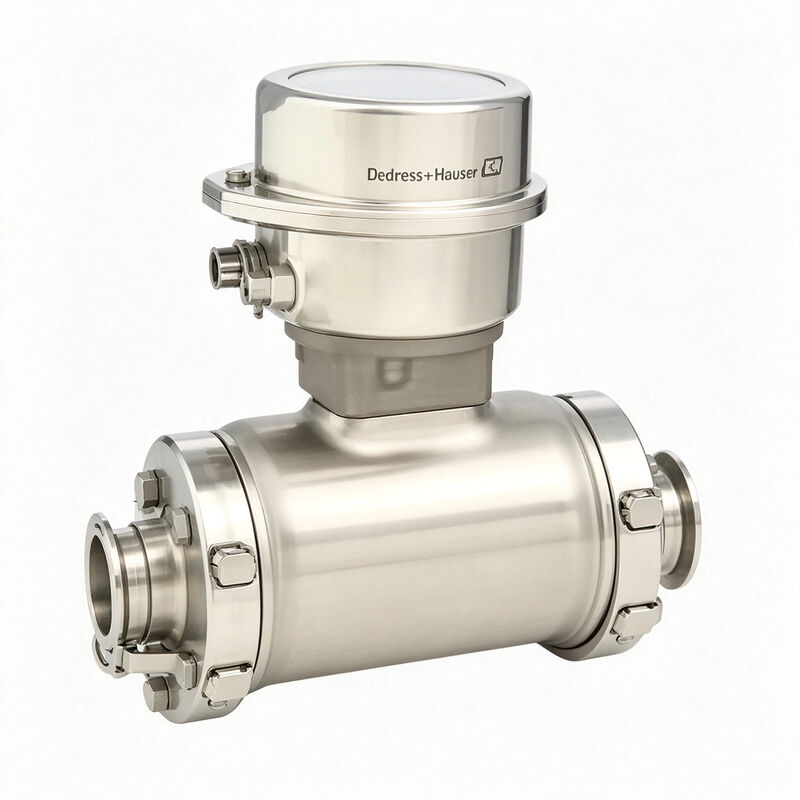

5H5B80-AAILABEAFAABEAFDCS0BA1+AA 15meters Proline Promag H 500 Electromagnetic Flowmeter
| Place of Origin | DE |
| Brand Name | Endress Hauser |
| Certification | ROHS |
| Model Number | 5H5B80-AAILABEAFAABEAFDCS0BA1+AA |
15meters Electromagnetic Flowmeter
,Titanium Grade Measuring Tube Magmeter
,4-20 MA HART Output Electromagnetic Flowmeter
The Proline Promag H 500 is a high-precision electromagnetic flowmeter designed for demanding industrial applications. With a 15-meter cable length and robust construction, it delivers reliable measurement across a wide range of conductive liquids.
Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s)
0.06 dm³/min to 600 m³/h (0.015 gal/min to 2,650 gal/min)
–20 to +150 °C (–4 to +302 °F)
PN 40, Class 150, 20K
Liner: PFA
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum
Process Connections: stainless steel, 1.4404 (F316L); PVDF; PVC adhesive sleeve
Seals: O-ring seal (EPDM, FKM, Kalrez), aseptic molded seal (EPDM, FKM, silicone)
Grounding Rings: stainless steel, 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); tantalum
- 5H5B80-AAILABEAFAABEAFDCS0BA1+AA 15m electromagnetic flowmeter
- 5H5B80-AAILABEAFAABEAFDCS0BA1+AA electromagnetic flowmeter
- Proline Promag H 500 electromagnetic flowmeter
| Part Number |
|---|
| V18345-1010160001 |
| V18345-1020521001 |
| 7ML6013-1AB00-1AA3 |
| 7ML1115-0BA30 |
| 7ML5110-1GD07-4AF3 |
| A5E36563512 |
| V18345-1010551001 |
| V18345-1010421001 |
| PMD55-AA21BA67FGBHAJA1A+AAF1N5PDZ1 KEEP BLANK |
| 71345530: DA63M-BB2BBB,FNPT1/2,IEC61518-A, PTFE |
| PMD75-BAA7LE3DAQA+N5Z1 0-17,44bar keep blank |
| 71345530: DA63M-BB2BBB.FNPT1/2,IEC61518-A,PTFE |
| CM42-LAA000EAE00 |
| CM42-KAA000EAE00 |
| CM42-MAA000EAE00 |
| 8F3B80-BBECCGAFAASAABSAA2+FF |
| FMB70-ACR1MA200CAA |
| FMP51-AAAACAAAA4GDJ 1300MM |
| CLS54D-AACS1A3A |
| V18345-1010251001 |
