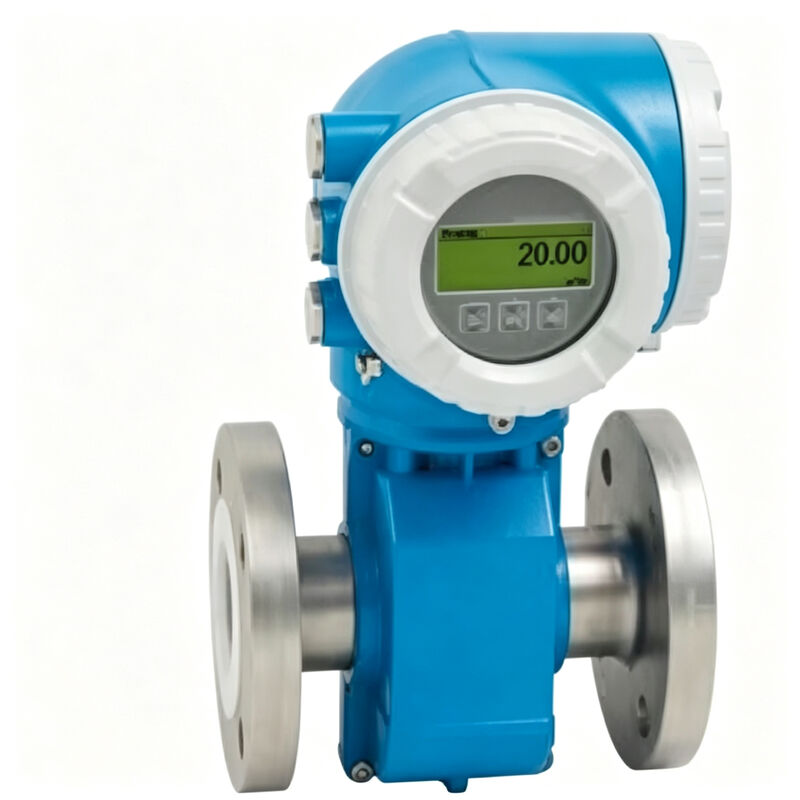

5P3B65-C3V1/0 Proline Promag P 300 Electromagnetic Flowmeter
| Place of Origin | DE |
| Brand Name | Endress Hauser |
| Certification | ROHS |
| Model Number | 5P3B65-C3V1/0 |
Product Details
Nominal Diameter Range::
DN 15 To 600 (½ To 24")
Wetted Materials::
Liner: PFA; PTFE
Measured Variables::
Volume Flow
Max. Process Pressure::
PN 40, Class 300, 20K
Inputs::
Status Input 4-20 MA Input
Material Certificates::
3.1 Material
Highlight:
DC 24 V Power Supply Electromagnetic Flowmeter
,Corrosion Resistant Liner Proline Promag P 300
,Bidirectional Measuring Principle Flow Measurement Device
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
negotiable
Packaging Details
Original packing
Delivery Time
on request
Payment Terms
T/T
Supply Ability
500pcs/month
Product Description
5P3B65-C3V1/0 Proline Promag P 300 Electromagnetic Flowmeter
Product Overview
Power Supply: DC 24 V. The Promag P 300 electromagnetic flowmeter is designed for chemical and process applications with corrosive liquids and highest medium temperatures.
Technical Specifications
Place of Origin: DE
Brand Name: Endress Hauser
Certification: Rohs
Model Number: 5P3B65-C3V1/0
Nominal Diameter Range: DN 15 to 600 (½" to 24")
Wetted Materials: Liner: PFA; PTFE
Measured Variables: Volume Flow
Max. Process Pressure: PN 40, Class 300, 20K
Inputs: Status Input 4-20 mA Input
Material Certificates: 3.1 Material
Approvals and Certificates
| Pressure Approvals | PED, CRN |
|---|---|
| Hygienic Approvals | ACS, NSF 61, WRAS |
| Safety Approvals | SIL |
Field of Application
Promag P is dedicated to chemical and process applications with corrosive liquids and highest medium temperatures. With its compact transmitter, Promag P 300 offers high flexibility in terms of operation and system integration: access from one side, remote display and improved connectivity options. Heartbeat Technology enables compliance and process safety at all times.
- The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
- Dedicated to chemical and process applications with corrosive liquids and high medium temperatures
Device Properties
- Nominal diameter: max. DN 600 (24")
- All common Ex approvals
- Liner made of PTFE or PFA
- Compact dual-compartment housing with up to 3 I/Os
- Backlit display with touch control and WLAN access
- Remote display available
Key Benefits
- Diverse applications - wide variety of wetted materials
- Energy-saving flow measurement - no pressure loss due to cross-section constriction
- Maintenance-free - no moving parts
- Full access to process and diagnostic information - numerous, freely combinable I/Os and Ethernet
- Reduced complexity and variety - freely configurable I/O functionality
- Integrated verification - Heartbeat Technology
