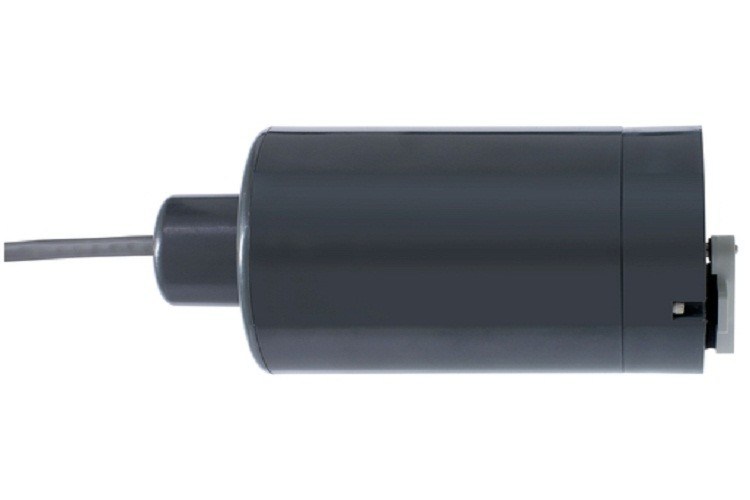

CUS71D-AA2A Turbimax CUS71D E&H Instrument Ultrasonic Interface Sensor
|
CUS71D-AA2A Turbimax CUS71D E&H Instrument Ultrasonic Interface Sensor
| Place of Origin | Germany |
| Brand Name | E&H |
| Certification | Rohs |
| Model Number | CUS71D-AA2A |
Product Details
Approval:
Non-hazardous Area
Material:
Sensor: ABS And Epoxy Resin, Wiper: EPDM, Housing: Polyamide
Cable Length:
15m (48 Ft), Crimp Sleeves
Sensor Version:
Standard
Measurement Range:
0.3 To 10 M (1 To 32 Ft)
Process Temperature:
1 To 50 °C (34 To 122 °F)
Measuring Principle:
Ultrasonic Return-time Measurement
Highlight:
E&H ultrasonic interface sensor
,Turbimax CUS71D sensor
,E&H Instrument ultrasonic sensor
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
standard carton packing
Delivery Time
on request
Payment Terms
T/T
Supply Ability
0-1000pcs
Product Description
CUS71D-AA2A Turbimax CUS71D E&H Instrument Ultrasonic Interface Sensor
Field of Application
Turbimax CUS71D continuously monitors the separation and transition zones in clarification and settling tanks, ensuring safe, economic and efficient sedimentation processes. It provides reliable, real-time measured values for quick control of valves and actuators.
Turbimax CUS71D is an online ultrasonic interface sensor for:
- Wastewater treatment plants: Solid sedimentation measurement
- Drinking and process water: Solid sedimentation measurement, filter monitoring and backwash, level measurement in marble chip tanks
- Utilities of all industries: Static separation processes, reuse of process water, product separation, flotation processes
Key Benefits
- Reliable: Accurate and continuous measurement of interface level or range
- Safe: Real-time interface information ensures quick control
- Easy: Simple commissioning with predefined calculation models
- Cost-saving: Automatic wiper cleaning enables maintenance-free operation
- Intelligent: All calibration and sensor-specific data stored in the sensor
- Flexible: Mounting hardware suits all clarifier designs
Technical Specifications
| Model | CUS71D-AA2A |
|---|---|
| Approval | AA (Non-hazardous area) |
| Sensor Version | 2 |
| Cable Length | 15m (48 ft), crimp sleeves |
| HS-Code | 90275000 |
| Country of Origin | DE |
| Measurement Range | 0.3 to 10 m (1 to 32 ft) |
| Process Temperature | 1 to 50 °C (34 to 122 °F) |
| Process Pressure | Standard: 0 to 6 bar (0 to 87 psi) With wiper: 0 to 0.3 bar (0 to 4.4 psi) |
