6.1M Rosemount 228 Conductivity Sensor , ROHS Toroidal Conductivity Sensor
|
6.1M Rosemount 228 Conductivity Sensor , ROHS Toroidal Conductivity Sensor
| Place of Origin | mexico |
| Brand Name | emerson |
| Certification | ROHS |
| Model Number | 228-04-21-54-61 |
Product Details
Origin:
Mexico
Model:
228-04-21-54-61
Product Name:
Toroidal Conductivity Sensor
Materials Of Construction:
Glass Filled Tefzel1
Process Connection:
3/4 In. MNPT4
Cable Type:
Unshielded Cable
Cable Length:
20 Ft (6.1 M)
Shipping Weight:
2.0kg
Highlight:
6.1M Rosemount 228 Conductivity Sensor
,Rosemount 228 Conductivity Sensor
,ROHS toroidal conductivity sensor
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
carton
Delivery Time
on request
Payment Terms
T/T
Supply Ability
1~1000pcs
Product Description
6.1M Rosemount 228 Conductivity Sensor, ROHS Toroidal Conductivity Sensor
Product Description

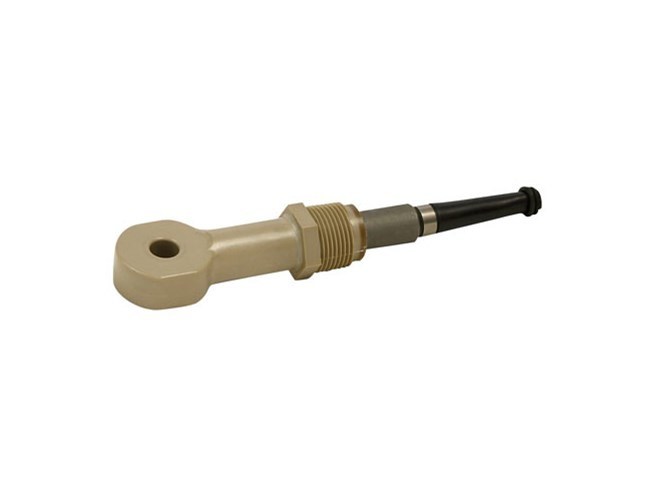

Rosemount Analytical Model 228 Conductivity Sensor 228-04-21-54-61
Submersion/Insertion toroidal (non-contacting) sensor for use in dirty, corrosive, or high conductivity liquids.
The Model 228 is a submersion-insertion type toroidal sensor. Because it measures conductivity by inducing a current, the toroids do not need to touch the sample, but can be encased in plastic. Thus, unlike metal electrode sensors, the Model 228 sensor can be used in corrosive and dirty samples. It is also ideal for measuring high conductivity liquids.
The sensor is available in glass-filled PEEK and in filled and unfilled Tefzel®. The temperature limit is 248ºF (120ºC); although a high temperature (392ºF (200ºC)) PEEK version is available. The pressure limit for PEEK body sensors is 295 psig (2135 kPa abs) and for Tefzel body sensors is 200 psig (1480 kPa abs).
Mechanical and manual retraction assemblies that allows the sensor to be removed from the process piping without shutting down the process and draining the line is also available.
Key Features
- Rugged construction
- Max Temp:
- PEEK: 120°C (248°F)
- PEEK: 200°C (392°F)
- Tefzel: 120°C (248°F)
- Max Pressure:
- PEEK: 295 psig
- Tefzel: 200 psig
- Tolerates high vibration
- Max cable length: 200ft
- Integral RTD
Common Models
| 1056-01-25-38-AN | 5081-P-HT |
| 1056-01-20-38-AN | 400-12-36-60 |
| 1056-01-22-38-AN | 23550-00 |
| 1056-03-22-32-AN | 24091-02 |
| 1057-02-20-32-42 | 400-11 |
| 1057-02-20-30-40 | 142-03-14-54 |
| 228-03-20-54-61 | 140-54 |
| 3900-1-10 | 23730-00 |
| 3900-2-10 | 23731-00 |
| 396P-02-10-55 | 9310120 |
| 396P-02-10-55-41 | 23724-00 |
| 389-01-10-54 | 400-13-54-50 |
| 389-01-10-55 | 400-12-54-50 |
| 389-02-10-54 | 400VP-11 |
| 499ADO-54-VP | 24263-00 |
| 5081-C-HT-21-67 | 24091-00 |
