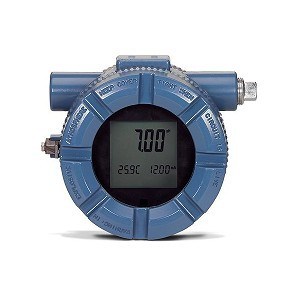

Emerson Rosemount PH Sensors Explosion Proof Transmitter 3900 Probe
|
Emerson Rosemount PH Sensors Explosion Proof Transmitter 3900 Probe
| Place of Origin | Singapore |
| Brand Name | Emerson |
| Certification | ROHS |
| Model Number | 5081-P-HT-20-73 |
Product Details
Material:
Plastic&metal
Origin:
Singapore
Conduit Openings:
3/4-in NPT
Ambient Temperature:
-4 To 149°F (-20 To 65°C)
Storage Temperature:
-22 To 176°F (-30 To 80°C)
Relative Humidity:
0 To 95% (non-condensing
Weight/Shipping Weight:
10 Lb/11 Lb (4.5/5.0 Kg)
Temperature Resolution:
0.1°C
Highlight:
Emerson Rosemount PH Sensors
,Explosion Proof Rosemount PH Sensors
,Explosion Proof rosemount 3900 ph probe
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
carton
Delivery Time
on request
Payment Terms
T/T
Supply Ability
1~1000pcs
Product Description
Emerson Rosemount PH Sensors Explosion Proof Transmitter 3900 Probe
Product Details
Emerson Rosemount 5081 Explosion-Proof Transmitter 5081-P-HT-20-73
Product No.: 5081-P-HT-20-73
Product type: pH/ORP Transmitter
- 5081: SMART two-wire microprocessor transmitter
- P: pH/ORP
- HT: Analog 4-20 mA output with superimposed HART digital signal
- 20: Infrared remote controller included
- 73: Agency approvals: ATEX approved intrinsically safe (when used with appropriate safety barrier)
- Weight: 4.5 Kg
- Shipping weight: 6 Kg
Specifications
The Model 5081 family of transmitters can be used to measure pH, ORP, conductivity (using either contacting or toroidal sensors), resistivity, oxygen (ppm and ppb level), free chlorine, total chlorine, and ozone in a variety of process liquids.
Enclosure
Cast aluminum containing less than 6% magnesium, with epoxy polyester coating. NEMA 4X (IP65) and NEMA 7B. Neoprene O-ring cover seals.
Dimensions
See Drawing
Technical Details
| Feature | Specification |
|---|---|
| Conduit Openings | 3/4-in NPT |
| Ambient Temperature | -4 to 149°F (-20 to 65°C) |
| Storage Temperature | -22 to 176°F (-30 to 80°C) |
| Relative Humidity | 0 to 95% (non-condensing) |
| Weight/Shipping Weight | 10 lb/11 lb (4.5/5.0 kg) |
| Display | Two-line LCD; first line shows process variable (pH, ORP, conductivity, % concentration, oxygen, ozone, or chlorine), second line shows process temperature and output current. |
| Temperature resolution | 0.1°C |
| Hazardous Location Approval | For details, see specifications for the measurement of interest. |
| RFI/EMI | EN-61326 |
Common Models
| Model Number | Model Number |
|---|---|
| 1056-01-25-38-AN | 5081-P-HT |
| 1056-01-20-38-AN | 400-12-36-60 |
| 1056-01-22-38-AN | 23550-00 |
| 1056-03-22-32-AN | 24091-02 |
| 1057-02-20-32-42 | 400-11 |
| 1057-02-20-30-40 | 142-03-14-54 |
| 228-03-20-54-61 | 140-54 |
| 3900-1-10 | 23730-00 |
| 3900-2-10 | 23731-00 |
