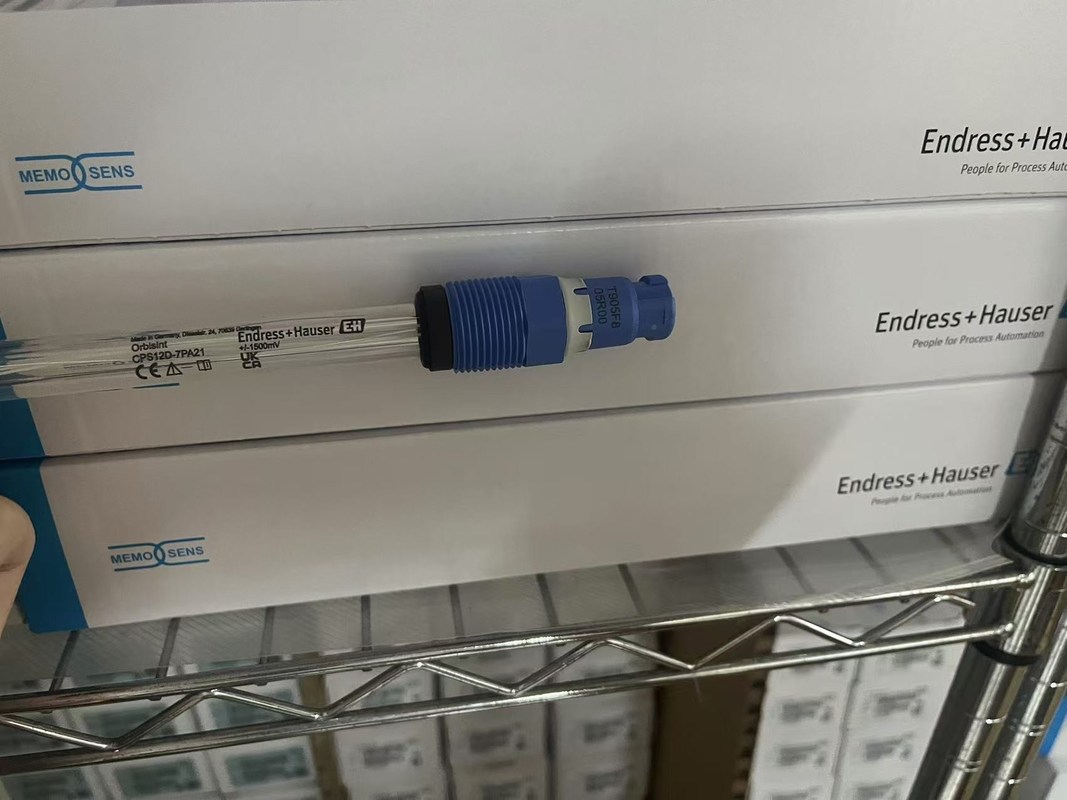

-1500MV Digital ORP Electrodes Orbisint CPS12D-7PA21 Non contact Memosens

CPS12D-7PA21 Digital ORP Electrodes Orbisint CPS12D

• Measuring principle: ORP electrode
• Applications: Standard applications in process and environmental fields. Long-term monitoring of static stabilization processes.
• Features: Non-contact Memosens digital technology. Robust design for heavy dust applications and high pressure environments.
• Measuring range: -1500 to +1500 mV
• Measuring principle: Compact gel electrode with Teflon diaphragm and double gel reference. Measuring parts are gold needles or platinum rings.
• Design: All sensor lengths include temperature sensor. Advanced Gel Technology. Inductive Memosens Digital Data Transfer.
• Material: Glass electrode with Teflon diaphragm.
• External dimensions: Diameter: 12 mm; Rod lengths: 120 mm, 225 mm, 360 mm
• Process temperature: 135°C max.
• Process pressure: max. 16 bar
• Temperature sensor: Pt1000
• Ex approvals: ATEX II IG EEXia IIC T3/T4/T6; FM/CSA Class1 Div.2 for use with CM42 and CPM153 transmitters.
• Connection: Inductive, digital connection head with Memosens technology
• Protection class: IP68
• Other certificates: Biocompatibility according to ISO 10993-5 and USP. TÜV certified with maximum withstanding capacity of 16 bar (triple overpressure safety protection). Electromagnetic compatibility according to EN 61326.

The Orbisint CPS12D is an all-round digital glass ORP electrode for process and environmental measurements. The ORP electrode provides reliable, high-precision measurements, even in hazardous areas. It features a long service life, low maintenance requirements, and cost-effective operation. Note: The Orbisint CPS12D is not the latest generation of Memosens sensors. The new generation CPS12E sensors include upgraded features.
