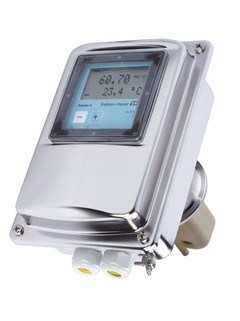

Endress Hauser Smartec CLD134-SSMS38HB2 Conductivity Compact Device

Conductivity Compact Device Smartec CLD134 CLD134-SSMS38HB2

• Measurement range: 100 µS/cm to 2000 mS/cm
  Cell constant k: 6.3 1/cm
• Process temperature: Max. 125 °C (257 °F)
  For sterilization: up to 150 °C for max. 60 min (302 °F for max. 60 min)
• Process pressure: 12 bar abs up to 90 °C (174 psi abs up to 194 °F)

Smartec CLD134 is a measuring system for inductive conductivity in the food & beverage and life sciences industries. The combination of a transmitter and a sensor is interference-free and especially easy-to-use. It meets the highest hygienic and sterile demands thanks to its food-grade virgin PEEK body, its jointless and creviceless design and its hygienic certificates.

Applications include:

• Phase separation of product/water and product/product mixtures in pipe systems
• Control of CIP processes in the return channel
• Concentration control in remaking of CIP cleaning agents
• Product monitoring in pipe systems, bottling plants, quality assurance
• Leakage monitoring

Protocols and interfaces:

• 0/4...20mA
• HART
• PROFIBUS DP
• PROFIBUS PA

• Unique hygienic design avoids recontamination
• With all hygienic certificates required in hygienic and sterile applications
• Certified biocompatibility according to USP class VI
• Compliant with EG 2023/2006 and 1935/2004
• Suitable for cleaning-in-place (CIP) and sterilization-in-place (SIP)
• Durable thanks to encapsulated, jointless design
