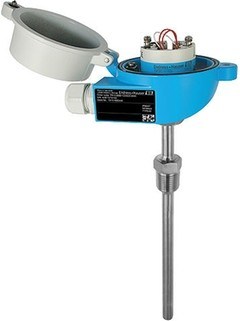

1088 Psi TR10 Modular RTD Thermometer TR10-UBD1BHS1K3000
| Brand Name | Endress Hauser |
| Model Number | TR10-UBD1BHS1K3000 |
Product Details
Response Time:
Depending On Configuration
Max. Process Pressure (static):
At 20 °C: 75 Bar (1088 Psi)
Accuracy:
Class A Acc. To IEC 60751
Max. Immersion Length On Request:
Up To 10.000,00 Mm (393,70'')
Insert / Probe:
Mineral Insulated (MI), Flexible
Highlight:
modular rtd thermometer
,1088 psi rtd thermometer
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Original packing
Delivery Time
On request
Payment Terms
T/T
Supply Ability
5000pcs/month
Product Description
1088 Psi TR10 Modular RTD Thermometer TR10-UBD1BHS1K3000
TR10 Modular RTD thermometer TR10-UBD1BHS1K3000
| Optional coating | Not defined |
|---|---|
| Surface roughness Ra | Not defined |
| Max. process pressure (static) | at 20 °C: 75 bar (1088 psi) |
Specs at a glance
- Accuracy: class A acc. to IEC 60751, class AA acc. to IEC 60751
- Response time: depending on configuration
- Max. process pressure (static): at 20 °C: 75 bar (1088 psi)
- Operating temperature range:
PT100 TF StrongSens: -50 °C ...500 °C (-58 °F ...932 °F)
PT100 WW: -200 °C ...600 °C (-328 °F ...1.112 °F)
PT100 TF: -50 °C ...400 °C (-58 °F ...752 °F) - Max. immersion length on request: up to 10.000,00 mm (393,70'')
Field of application
The high modular and robust thermometer finds its use in several applications in almost all industries. An optional head transmitter, with all common communication protocols, makes the device ready to use with enhanced measurement accuracy and reliability compared to directly wired sensors. A variety of process connections, dimensions and materials offer flexible application possibilities.
- Universal range of application
- Measuring range: -200 to +600 °C (-328 to 1112 °F)
- Pressure range up to 75 bar (1088 psi)
- Degree of protection: up to IP68
- Vibration-resistant sensor elements up to 60g
Benefits
- High degree of flexibility thanks to modular design with standard terminal heads as per DIN EN 50446 and customer-specific immersion lengths
- High degree of insert compatibility and design as per DIN 43772
- Extension neck to protect the head transmitter from overheating
- Fast response time with reduced/tapered tip form
- Types of protection for use in hazardous locations: Intrinsic safety (Ex ia), non-sparking (Ex nA)
- Head transmitter with easy selection: Analog output 4 to 20 mA, HART®, PROFIBUS® PA or FOUNDATION Fieldbus™
Important Terms:
- Place of delivery (EXW/FOB/CIF): EXW
- Packing cost: For free
- Unit weight: Kg/lbs 8kg
- Unit dimensions: (W x L x H) : 40*35*30cm
- HS Code: 90261000
- Payment terms: TT
- Warranty: 12 months
