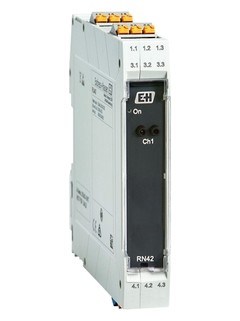

RN42 Active Barrier Wide Range Power Supply RN42-8L1AU
| Place of Origin | DE |
| Brand Name | Endress Hauser |
| Certification | Rohs |
| Model Number | RN42-8L1AU |
Product Details
Specs At A Glance:
0/4…20 MA / HART
Output:
0/4…20 MA / HART
Power Supply:
24...230 V AC/DC
Measuring Principle:
Active Barrier
Function:
1-channel
Highlight:
RN42 active barrier
,wide range power supply active barrier
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Original packing
Delivery Time
On request
Payment Terms
T/T
Supply Ability
5000pcs/month
Product Description
RN42 Active Barrier Wide Range Power Supply RN42-8L1AU
Product Overview
The RN42 Active Barrier provides wide-range power supply (RN42-8L1AU) for transmission and galvanic isolation of 4 to 20 mA/HART signals.
Certification
| SIL 2 SC 3 |
Operation
| HART |
Output
| 0/4…20 mA / HART active/passive |
Key Specifications
- Input: 0/4…20 mA / HART, feeding/not feeding
- Output: 0/4…20 mA / HART, active/passive
- Power Supply: 24...230 V AC/DC
Field of Application
The active barrier is used for transmission and galvanic isolation of 4 to 20 mA/HART signals. The device has an active/passive current input to which a 2- or 4-wire transmitter can be connected directly. The output of the device can be operated actively or passively. The current signal is then available to the PLC/controller or for further instrumentation at pluggable screw or optional push-in terminals.
Features
- 1-channel active barrier, wide-range power supply
- Transmission and galvanic isolation of analog 0/4 to 20 mA signals
- Optionally intrinsic safe [Ex-ia] signals from hazardous area
- Bidirectional transmission of HART® communication signals
- Feeding or not feeding input for 2- or 4-wire instruments
- Active or passive signal output
- Ambient temperature range: -40 … 60 °C (-40 … 140 °F)
Benefits
- Wide range power supply of 19.2 to 253 V AC/DC
- Quick and easy wiring thanks to plug-in terminals
- Optional for safety-oriented applications up to SIL 2 (SC3) in accordance with IEC 61508
- Optional installation in Ex Zone 2
- Compact housing width with 17.5 mm (0.69 in) for efficient use of space
- Option for installation rotated by 180° (terminals for power supply at top or bottom)
Important Terms
- Place of delivery (EXW/FOB/CIF): EXW
- Packing cost: For free
- Unit weight: Kg/lbs 8kg
- Unit dimensions: (W x L x H) : 40*35*30cm
- HS Code: 90261000
- Payment terms: TT
- Warranty: 12 months
Our Advantage
- Best possible prices and delivery time
- Long time experience in the field
- Well trained staff
- Own warehouse facilities
- Best relationships with branch office of manufacture
- Flexible and individual service for you
- Cheap and safe forwarder for shipments (air)
Frequently Asked Questions
Q: Does your goods are new and original?
A: Yes, they are new and original.
Q: How long warranty?
A: One-year warranty.
Q: Does any certificates can be provided?
A: Yes, it depends on what product you request, please check details with our sales.
Q: Varied payment methods.
A: We adopt T/T, alipay and paypal and Currency in EURO,USD,RMB
Q: SHIPPING:
A: We can shipping all over the world.via DHL,UPS,Fedex,TNT and IPS,PDE,BRE,KARAPOST etc.
Our Product Range
Transmitter, Safety barries, Flow meters, Probe, Sensor, Transducer. Valves,Analysis meter, Positioner, Acuator, etc.
