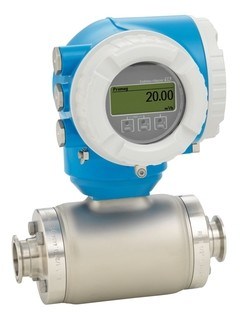

Proline Promag H 300 E&H Mag Flow Meter 5H3B65-AAIBAEAFAAFDASGAA1
|
Proline Promag H 300 E&H Mag Flow Meter 5H3B65-AAIBAEAFAAFDASGAA1
| Place of Origin | DE |
| Brand Name | Endress Hauser |
| Certification | Rohs |
| Model Number | 5H3B65-AAIBAEAFAAFDASGAA1 |
Product Details
Volume Flow (standard):
±0.5 % O.r.± 1 Mm/s (0.04 In/s)
Measuring Range:
0.06 Dm³/min To 600 M³/h (0.015 Gal/min To 2 650 Gal/min)
Medium Temperature Range:
–20 To +150 °C (–4 To +302 °F)
Max. Process Pressure:
PN 40, Class 150, 20K
Measuring Principle:
Electromagnetic
Nominal Diameter Range:
DN 2 To 150 (¹⁄₁₂ To 6")
Highlight:
rohs e&h mag flow meter
,picomag e&h mag flow meter
,h 300 picomag flow meter
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Original packing
Delivery Time
On request
Payment Terms
T/T
Supply Ability
5000pcs/month
Product Description
Proline Promag H 300 E&H Mag Flow Meter 5H3B65-AAIBAEAFAAFDASGAA1
Proline Promag H 300 electromagnetic flowmeter 5H3B65-AAIBAEAFAAFDASGAA1
| Max. process pressure | PN 40, Class 150, 20K |
| Medium temperature range | -20 to +150 °C (-4 to +302 °F) |
| Sensor housing material | 1.4301 (304), corrosion resistant |
Specs at a glance
- Max. measurement error
Volume flow (standard): ±0.5 % o.r.± 1 mm/s (0.04 in/s)
Volume flow (option) ±0.2 % o.r. ± 2 mm/s (0.08 in/s) - Measuring range
0.06 dm³/min to 600 m³/h (0.015 gal/min to 2 650 gal/min) - Medium temperature range
-20 to +150 °C (-4 to +302 °F) - Max. process pressure
PN 40, Class 150, 20K - Wetted materials
Liner: PFA
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum
Process Connections: stainless steel, 1.4404 (F316L); PVDF; PVC adhesive sleeve
Seals: O-ring seal (EPDM, FKM, Kalrez), aseptic molded seal (EPDM, FKM, silicone)
Grounding Rings: stainless steel, 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); tantalum
Field of application
Promag H is the preferred sensor for hygienic applications with highest requirements in the food and beverage and life sciences industries. With its compact transmitter Promag H 300 offers a high flexibility in terms of operation and system integration: access from one side, remote display and improved connectivity options. Heartbeat Technology ensures compliance and process safety at all times.
- The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
- Dedicated to demanding applications in the food and beverage as well as in life sciences industries
Device properties
- Liner made of PFA
- Sensor housing made of stainless steel (3A, EHEDG)
- Wetted materials CIP, SIP cleanable
- Compact hygienic dual-compartment housing with IP69 and up to 3 I/Os
- Backlit display with touch control and WLAN access
- Remote display available
Benefits
- Flexible installation concept - numerous hygienic process connections
- Energy-saving flow measurement - no pressure loss due to cross-section constriction
- Maintenance-free - no moving parts
- Full access to process and diagnostic information - numerous, freely combinable I/Os and fieldbuses
- Reduced complexity and variety - freely configurable I/O functionality
- Integrated verification - Heartbeat Technology
Our Advantage:
- Best possible prices and delivery time
- Long time experience in the field
- Well trained staff
- Own warehouse facilities
- Best relationships with branch office of manufacture
- Flexible and individual service for you
- Cheap and safe forwarder for shipments (air)
Frequently Asked Questions:
Q: Does your goods are new and original?
A: Yes, they are new and original.
Q: How long warranty?
A: One-year warranty.
Q: Does any certificates can be provided?
A: Yes, it depends on what product you request, please check details with our sales.
Q: Varied payment methods.
A: We adopt T/T, alipay and paypal and Currency in EURO,USD,RMB
Q: SHIPPING:
A: We can shipping all over the world.via DHL,UPS,Fedex,TNT and IPS,PDE,BRE,KARAPOST etc.
Our Product Range:
Transmitter, Safety barries, Flow meters, Probe, Sensor, Transducer. Valves,Analysis meter, Positioner, Acuator, etc.
