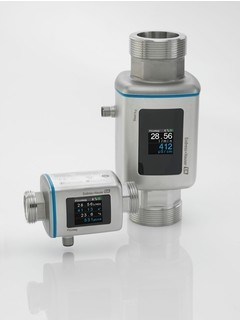

DMA50-AAAAA1 E&H Instrument Picomag Electromagnetic Flowmeter IP65 / 67 in stock

• Max. measurement error: Volume flow: +/-0.8% o.r. +/- 0.1% o.f.s
• Measuring range: up to 750 l/min
• Medium temperature range: -10 to 70°C (+14 to +158 °F)
  Permissible short-term temperature, maximum one hour: 85 °C (185 °F)
  Repetition after 4 hours at the earliest
• Max. process pressure: 16 bar
• Wetted materials: PEEK, Stainless Steel, FKM, EPDM
  Electrodes: 1.4404/316L

Picomag is the economical magmeter for many applications in secondary circuits with conductive liquids in all industries. End customers, skid builders, equipment manufacturers and system integrators value the space-saving Picomag for its flexible installation capabilities. Additionally, its future-oriented, intuitive operation via SmartBlue app on every Bluetooth-enabled smartphone or tablet ensures fast, secure and simple commissioning.

• The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
• Ideal for process quality control and monitoring due to temperature and conductivity measurement in utilities.

• High shock and vibration resistance
• Degree of protection: IP65/67
• Empty pipe detection
• Wireless remote access via Bluetooth SmartBlue app
• IO-Link and various I/Os for all line-sizes
• 1.4" TFT color display with backlight

• Time-saving, easy configuration even in places difficult to reach - secure Bluetooth connection
• Fewer measuring points necessary - simultaneous flow, conductivity and temperature measurement
• Cost-efficient specialist for use in tight spaces e.g. skids - sensor and transmitter in one housing
• Quick offline configuration check - unique, comfortable knock functionality
• Simple device access through its whole lifecycle - no manual needed due to intuitive SmartBlue App
• Instant local process monitoring - large, user-friendly display of all measurement activities
• Flexible integration into all fieldbus systems - plug-and-play device with IO-Link

• Place of delivery: EXW
• Packing cost: For free
• Unit weight: 8kg
• Unit dimensions: 40×35×30cm (W×L×H)
• HS Code: 90261000
• Payment terms: TT
• Warranty: 12 months

• Best possible prices and delivery time
• Long time experience in the field
• Well trained staff
• Own warehouse facilities
• Best relationships with branch office of manufacture
• Flexible and individual service for you
• Cheap and safe forwarder for shipments (air)

Transmitter, Safety barries, Flow meters, Probe, Sensor, Transducer. Valves,Analysis meter, Positioner, Acuator, etc.
