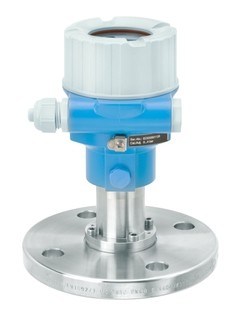

Cerabar PMC51 Digital Pressure Transmitter With Capacitive Measuring Cell PMC51-7901/101
|
Cerabar PMC51 Digital Pressure Transmitter With Capacitive Measuring Cell PMC51-7901/101
| Place of Origin | DE |
| Brand Name | Endress Hauser |
| Certification | Rohs |
| Model Number | PMC51-7901/101 |
Product Details
Accuracy:
Standard 0.1% Platinum 0.075%
Process Temperature:
-20°C...130°C (-4°F...266°F)
Pressure Measuring Range:
100 Mbar...40 Bar (1.5psi...600psi)
Process Pressure / Max. Overpressure Limit:
60 Bar (900 Psi)
Main Wetted Parts:
Ceraphire Sealing Alloy C276 316L
Max. Measurement Distance:
400 M (1312 Ft) H2O
Highlight:
hygienic applications Digital Pressure Transmitter
,PMC51-7901/101
,Capacitive Measuring Cell Digital Pressure Transmitter
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Original packing
Delivery Time
On request
Payment Terms
T/T
Supply Ability
500pcs/month
Product Description
Cerabar PMC51 Digital Pressure Transmitter With Capacitive Measuring Cell PMC51-7901/101
Absolute And Gauge Pressure Cerabar PMC51 PMC51-7901/101
| Material process membrane | Ceramic |
|---|---|
| Measuring cell | 100 mbar...40 bar |
| Supply voltage | 4...20 mA HART |
Specs at a glance
- Accuracy: Standard 0.1% / Platinum 0.075%
- Process temperature: -20°C...130°C (-4°F...266°F)
- Pressure measuring range: 100 mbar...40 bar (1.5psi...600psi)
- Process pressure / max. overpressure limit: 60 bar (900 psi)
- Main wetted parts: Ceraphire, Sealing, Alloy C276, 316L
- Max. measurement distance: 400 m (1312 ft) H2O
- Material process membrane: Ceramic
- Measuring cell: 100 mbar...40 bar (1.5 psi...600 psi) relative/absolute
See all specifications
Field of application
The Cerabar PMC51 digital pressure transmitter with capacitive, oil-free ceramic measuring cell is typically used in process and hygienic applications for pressure, level, volume or mass measurement in liquids and gases. It guarantees high degree of system safety thanks to vacuum-proof ceramic membrane with integrated breakage detection. Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2 according to IEC 61508 / IEC 61511.
Single chamber aluminum or stainless steel (316L) housing.
- Process connections: Threads, flanges or hygienic connections
- Process temperature: -40 to +130°C (-40 to +266°F), 150°C (302°F) for 1h
- Measuring ranges: -1/0 up to +40bar (-15/0 to +600psi)
- Accuracy: ±0.1%, "Platinum" ±0.075%
- International explosion protection certificates, SIL, hygienic approvals, marine approvals
Benefits
- Best fit for vacuum applications and applications with corrosive and abrasive media
- Process safety through membrane breakage detection
- Overload-resistant high purity ceramic sensor (99.9% Al2O3)
- Condensation resistant also for hygienic applications
- Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
- Process pressure up to SIL2, certified to IEC 61508 and IEC 61511
- Available with mounted manifolds: always fit, always tested for leaks
Important Terms:
Place of delivery: EXW
Packing cost: For free
Unit weight: 8kg
Unit dimensions: 40*35*30cm (W*L*H)
HS Code: 90261000
Payment terms: TT
Warranty: 12 months
Our Advantage:
- Best possible prices and delivery time
- Long time experience in the field
- Well trained staff
- Own warehouse facilities
- Best relationships with branch office of manufacture
- Flexible and individual service for you
- Cheap and safe forwarder for shipments (air)
Frequently Asked Questions:
Q: Does your goods are new and original?
A: Yes, they are new and original.
Q: How long warranty?
A: One-year warranty.
Q: Does any certificates can be provided?
A: Yes, it depends on what product you request, please check details with our sales.
Q: Varied payment methods.
A: We adopt T/T, alipay and paypal and Currency in EURO,USD,RMB
Q: SHIPPING:
A: We can shipping all over the world via DHL,UPS,Fedex,TNT and IPS,PDE,BRE,KARAPOST etc.
Our Product Range: Transmitter, Safety barries, Flow meters, Probe, Sensor, Transducer. Valves, Analysis meter, Positioner, Acuator, etc.
