ITEMP TMT82 7 Temperature Transmitter TMT82-AAA1CD2TRTRA2
| Place of Origin | DE |
| Brand Name | Endress Hauser |
| Certification | Rohs |
| Model Number | TMT82-AAA1CD2TRTRA2 |
Product Details
Accuracy:
(Pt100, -50...200 °C) <= 0,1 K
Measuring Principle:
Head Transmitter
Input:
2 X RTD, TC, Ohm, MV
Output:
1 X Analog 4...20 MA / HART
Communication:
HART-protocol
Auxiliary Power Supply:
11...42 V DC (head Transmitter)
Highlight:
TMT82-AAA1CD2TRTRA2
,accurate Temperature Transmitter
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Original packing
Delivery Time
On request
Payment Terms
T/T
Product Description
ITEMP TMT82 7 Temperature Transmitter TMT82-AAA1CD2TRTRA2
| Galvanic isolation | Yes |
| Accuracy (Pt100, -50...200 °C) | <= 0.1 K |
| Communication | HART-protocol |
Specs at a glance
- Accuracy: (Pt100, -50...200 °C) <= 0.1 K / (Pt100, -58...392 °F) <= 0.18 °F
- See all specifications
Field of application

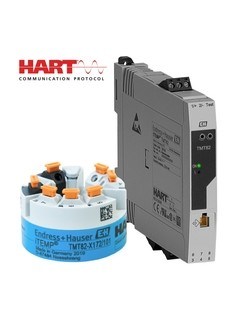

The iTEMP TMT82 is a highly reliable, accurate and long-term stable temperature transmitter for industrial processes requiring high availability.
The versatile 2-channel device converts universal sensor inputs such as thermocouples or RTD into stable, scalable 4 to 20 mA output signals and HART® communication. With its built-in smart sensor monitoring capability and diagnostic status information according to NAMUR NE 107, the SIL 2, SC3 certified transmitter increases process safety and uptime.
- Safe operation in hazardous areas; International approvals such as FM, CSA, ATEX, EAC, NEPSI, IECEx, DNV GL
- 2-channel universal signal inputs: RTD, thermocouple, resistance (Ω) and voltage transmitters (mV), HART® 7 protocol
- Suited for use in marine applications
- Installation in explosion proof field housings
- Protection class up to IP 68
- Fits in flat-face terminal heads as per DIN EN 50446
- Cabinet or DIN rail mounting; width: 17.5 mm
Benefits
- Robust temperature transmitter delivering precise, long-term stable measurements for high plant availability
- SIL certification up to SIL2, SC3 according to IEC 61508:2010
- Versatile mounting and housing options: terminal head form B, DIN rail, field housing with separate terminal compartment, integrated display (TID10)
- Transmitter-sensor matching for highest measurement accuracy
- Sensor and hardware failure detection; diagnostic status information according to NAMUR NE 107
- Time-saving installation: Tool-free wiring with push-in terminal technology
Important Terms:
- Place of delivery: EXW
- Packing cost: For free
- Unit weight: 8kg
- Unit dimensions: 40×35×30cm (W×L×H)
- HS Code: 90261000
- Payment terms: TT
- Warranty: 12 months
Our Advantage
- Best possible prices and delivery time
- Long time experience in the field
- Well trained staff
- Own warehouse facilities
- Best relationships with branch office of manufacture
- Flexible and individual service for you
- Cheap and safe forwarder for shipments (air)
Frequently Asked Questions
Q: Does your goods are new and original?
A: Yes, they are new and original.
Q: How long warranty?
A: One-year warranty.
Q: Does any certificates can be provided?
A: Yes, it depends on what product you request, please check details with our sales.
Q: Varied payment methods.
A: We adopt T/T, alipay and paypal and Currency in EURO,USD,RMB
Q: SHIPPING:
A: We can shipping all over the world.via DHL,UPS,Fedex,TNT and IPS,PDE,BRE,KARAPOST etc.
Our Product Range:
Transmitter, Safety barries, Flow meters, Probe, Sensor, Transducer. Valves,Analysis meter, Positioner, Acuator, etc.
