Metallic Membrane Digital Pressure Transmitter PMP71 PMP71-1BA1H11RHAAA+Z1
|
Metallic Membrane Digital Pressure Transmitter PMP71 PMP71-1BA1H11RHAAA+Z1
| Place of Origin | DE |
| Brand Name | Endress Hauser |
| Certification | Rohs |
| Model Number | PMP71-1BA1H11RHAAA+Z1 |
Product Details
Accuracy:
Standard: 0.05%
Platinum:
Up To 0.025%
Process Temperature:
-40°C...125°C
Pressure Measuring Range:
100mbar...700bar
Main Wetted Parts:
Alloy C276 316L Rhodium
Material Process Membrane:
316L, AlloyC, Rhodium> Gold
Highlight:
Metallic Membrane Digital Pressure Transmitter
,700bar Digital Pressure Transmitter
,PMP71-1BA1H11RHAAA+Z1
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Original packing
Delivery Time
On request
Payment Terms
T/T
Product Description

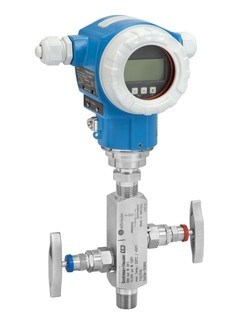

Metallic Membrane Digital Pressure Transmitter PMP71 PMP71-1BA1H11RHAAA+Z1
Absolute and gauge pressure Cerabar PMP71 PMP71-1BA1H11RHAAA+Z1
| Measuring cell | 100 mbar...700 bar |
| Measuring principle | Absolute and gauge pressure |
| Fill fluid | Silicone oil, Inert oil |
Specs at a glance
- Accuracy
Standard: 0.05%
Platinum: up to 0.025% - Process temperature
-40°C...125°C (-40°F...257°F) - Pressure measuring range
100mbar...700bar (1.5psi...10.500psi) - Main wetted parts
Alloy C276, 316L, Rhodium - Material process membrane
316L, AlloyC, Rhodium> Gold - Measuring cell
100 mbar...700 bar (1.5 psi...10.500 psi) relative/absolute
See all specifications
Field of application
The Cerabar PMP71 digital pressure transmitter with metallic membrane is typically used in process applications for pressure, level, volume or mass measurement in liquids or gases. PMP71 is designed for high pressure applications up to 700bar. Quick Setup with freely adjustable measuring range without pressure specification. Designed according to IEC 61508 for use in SIL2/3 safety systems and available with MID Parts Certificate suitable for custody transfer applications.
Two chamber aluminum or stainless steel (316L) housing.
- Process connections: Threads and flange connections
- Process temperature: -40 to +125°C (-40 to +257°F)
- Measuring ranges: -1/0 up to 700bar (-15/0 up to +10,500psi)
- Accuracy: ±0.05%, "Platinum" ±0.025%
- International explosion protection certificates, overfill prevention WHG, hygienic approvals, marine approvals, SIL
Benefits
- Best accuracy, reproducibility and long-term stability
- Highest safety due to gas tight feedthrough with capabilities up to SIL2/3, certified to IEC 61508
- Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
- HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
- Overload-resistant and function-monitored from the measuring cell to the electronics
- Available with mounted manifolds: always fit, always tested for leaks
- Seamless and independent system integration (HART/PA/FF)
