100mbar - 40bar E&H Instrument Absolute And Gauge Pressure Cerabar PMC21-76H1/0
|
100mbar - 40bar E&H Instrument Absolute And Gauge Pressure Cerabar PMC21-76H1/0
| Place of Origin | DE |
| Brand Name | Endress Hauser |
| Certification | Rohs |
| Model Number | PMC21-76H1/0 |
Product Details
Accuracy:
0.3 %
Process Temperature:
-25 °C…+100 °C
Pressure Measuring Range:
+100 Mbar…+40 Bar
Measuring Cell:
+100 Mbar…+40 Bar
Supply Voltage:
10…30 VDC
Long Term Stability:
0.2 % Of URL/year
Highlight:
pressure transmitter E&H Instrument
,PMC21-76H1/0
,100mbar compact pressure transmitter
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Original packing
Delivery Time
On request
Payment Terms
T/T
Product Description
E&H Instrument Absolute and Gauge Pressure Cerabar PMC21-76H1/0

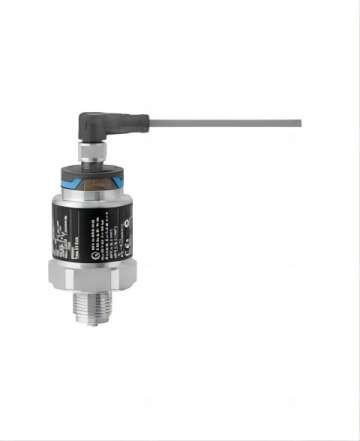

The Cerabar PMC21 is a compact pressure transmitter featuring a capacitive, oil-free ceramic sensor capable of measuring absolute or gauge pressure from 100mbar to 40bar.
| Process temperature | -25 °C…+100 °C |
| Ambient temperature | -40 °C…+85 °C |
| Max. overpressure limit | max. 60 bar |
Key Specifications
- Accuracy: 0.3%
- Process temperature: -25 °C…+100 °C (-13 °F....+185 °F)
- Pressure measuring range: +100 mbar…+40 bar (+1.5 psi...+600 psi)
- Measuring cell: +100 mbar…+40 bar (+1.5 psi...+600 psi)
See all specifications
Field of Application
This pressure transducer with capacitive, oil-free ceramic sensor measures absolute or gauge pressure in gases or liquids. Designed for harsh industrial environments with IP68 protection and abrasion-resistant Ceraphire membrane.
- Process connections: Threads
- Process temperature: -25 to +100°C (-13 to +212°F)
- Process pressure: 100mbar to +40bar (1.5 to +600psi)
- Accuracy: ±0.3% of span
- International explosion protection certificates and marine approvals
Product Benefits
- Easy installation with compact design and customizable measuring ranges
- High accuracy (0.3%) with excellent long-term stability and repeatability
- Reliable performance in difficult environments with various cleaning options
- Compliance with hazardous area and marine certifications
