E&H Instrument Absolute And Gauge Pressure Cerabar PMP71-2EWR7/101
|
E&H Instrument Absolute And Gauge Pressure Cerabar PMP71-2EWR7/101
| Place of Origin | DE |
| Brand Name | Endress Hauser |
| Certification | Rohs |
| Model Number | PMP71-2EWR7/101 |
Product Details
Accuracy:
Standard: 0.05%
Process Temperature:
-40°C...125°C
Pressure Measuring Range:
100mbar...700bar
Main Wetted Parts:
Alloy C276 316L Rhodium
Measuring Cell:
100 Mbar...700 Bar
Measuring Principle:
Absolute And Gauge Pressure
Highlight:
PMP71-2EWR7/101
,E&H Instrument for gauge pressure
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Original packing
Delivery Time
On request
Payment Terms
T/T
Supply Ability
500pcs/month
Product Description

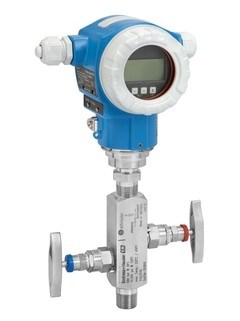

E&H Instrument Absolute And Gauge Pressure Cerabar PMP71-2EWR7/101
E &H Instrument Absolute and gauge pressure Cerabar PMP71-2EWR7/101
Key Specifications
| Reference Accuracy | Standard: 0.05% |
| Long term stability | 0.05% of URL/year |
| Process temperature | -40°C...125°C |
Detailed Specifications
- Accuracy
Standard: 0.05%
Platinum: up to 0.025% - Process temperature
-40°C...125°C (-40°F...257°F) - Pressure measuring range
100mbar...700bar (1.5psi...10.500psi) - Main wetted parts
Alloy C276, 316L, Rhodium - Material process membrane
316L, AlloyC, Rhodium > Gold - Measuring cell
100 mbar...700 bar (1.5 psi...10.500 psi) relative/absolute
See all specifications
Field of Application
The Cerabar PMP71 digital pressure transmitter with metallic membrane is typically used in process applications for pressure, level, volume or mass measurement in liquids or gases. PMP71 is designed for high pressure applications up to 700bar. Features quick setup with freely adjustable measuring range without pressure specification. Designed according to IEC 61508 for use in SIL2/3 safety systems and available with MID Parts Certificate suitable for custody transfer applications.
- Two chamber aluminum or stainless steel (316L) housing
- Process connections: Threads and flange connections
- Process temperature: -40 to +125°C (-40 to +257°F)
- Measuring ranges: -1/0 up to 700bar (-15/0 up to +10,500psi)
- Accuracy: ±0.05%, "Platinum" ±0.025%
- International explosion protection certificates, overfill prevention WHG, hygienic approvals, marine approvals, SIL
Key Benefits
- Best accuracy, reproducibility and long-term stability
- Highest safety due to gas tight feedthrough with capabilities up to SIL2/3, certified to IEC 61508
- Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
- HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
- Overload-resistant and function-monitored from the measuring cell to the electronics
- Available with mounted manifolds: always fit, always tested for leaks
- Seamless and independent system integration (HART/PA/FF)
Our Advantages
- Best possible prices and delivery time
- Long time experience in the field
- Well trained staff
- Own warehouse facilities
- Best relationships with branch office of manufacture
- Flexible and individual service for you
- Cheap and safe forwarder for shipments (air)
Frequently Asked Questions
Q: Does your goods are new and original?
A: Yes, they are new and original.
Q: How long warranty?
A: One-year warranty.
Q: Does any certificates can be provided?
A: Yes, it depends on what product you request, please check details with our sales.
Q: Varied payment methods.
A: We adopt T/T, alipay and paypal and Currency in EURO,USD,RMB
Q: SHIPPING:
A: We can shipping all over the world.via DHL,UPS,Fedex,TNT and IPS,PDE,BRE,KARAPOST etc.
Our Product Range
Transmitter, Safety barries, Flow meters, Probe, Sensor, Transducer. Valves, Analysis meter, Positioner, Acuator, etc.
