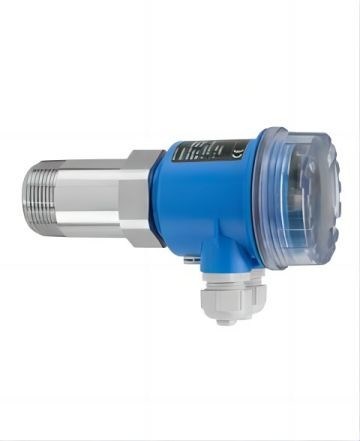

E&H Instrument Microwave Barrier Transceiver Soliwave FDR56 FDR56-AA1ADDVE21
|
E&H Instrument Microwave Barrier Transceiver Soliwave FDR56 FDR56-AA1ADDVE21
| Place of Origin | DE |
| Brand Name | Endress Hauser |
| Certification | Rohs |
| Model Number | FDR56-AA1ADDVE21 |
Product Details
Non-contact Installation:
Any
Within Installation:
-40 °C...+70 °C
With HT-Adapter:
Up To +450 °C (+842 °F)
Min. Density Of Medium:
10 G/l
Measuring Principle:
Microwave Barrier
Ambient Temperature:
-40 °C...+70 °C
Highlight:
Microwave Barrier E&H Instrument
,Microwave Barrier Transceiver
,FDR56-AA1ADDVE21
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Original packing
Delivery Time
On request
Payment Terms
T/T
Supply Ability
500pcs/month
Product Description
E&H Instrument Microwave Barrier Transceiver Soliwave FDR56 FDR56-AA1ADDVE21
The Soliwave FDR56 microwave barrier transceiver provides reliable point level detection for bulk solids in industrial applications.
Technical Specifications
| Supply/Communication | 85 ... 253 VAC |
|---|---|
| Measurement Range | Max. 100 m |
| Measuring Principle | Microwave barrier |
Key Specifications
-
Process TemperatureNon-contact installation: anyWithin installation: -40 °C...+70 °C (-40 °F...+158 °F)With HT-Adapter: up to +450 °C (+842 °F)
-
Process Pressure / Max. Overpressure LimitNon-contact installation: anyWithin installation: 0.5 bar ... 6.8 bar (7.2 psi ... 99 psi) abs.With HD-Adapter: up to +21 bar (+305 psi) abs.
-
Min. Density of MediumSolid weight: > 10 g/l
Field of Application
The Soliwave FDR56 microwave barrier uses a contact-free procedure for detection of point levels in containers, conduits, shafts or on free fall shafts. It can measure through non-metallic container materials from the outside. Suitable as point level switch for controlling and counting all types of bulk solids. Works in conjunction with the Soliwave FQR56 emitter.
Typical Bulk Solids:
- Wood chips, wood dust or flour
- Plaster, cement, ash
- Paper or cardboard shred, gravel, sand
- Dried powders in general, bags and boxes
Additional Features:
- Process connections: Threads
- Ambient temperature: -40 to +70°C (-40 to +158°F)
- Measuring range: Max. 100m (328ft)
- International explosion protection certificates
Product Benefits
- Highly reliable measurement with flush-mounted or non-contact installation options
- Signal strength indication on transceiver
- Mechanically robust solution ensures long service life and cost savings
- No wear and tear with optional process-wetted ceramic sensor diaphragm
- 360° rotatable electronics housing for optimal positioning
- Direct connection of supply voltage (emitter and receiver separately or together)
- Mechanically compatible with FQR50/FDR50 microwave barrier
