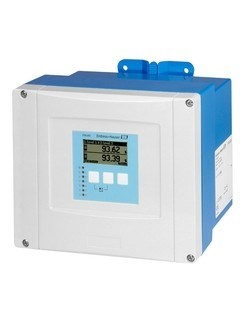

Prosonic FMU90 E&H Instrument Ultrasonic Measurement Time Of Flight
| Place of Origin | DE |
| Brand Name | Endress Hauser |
| Certification | Rohs |
| Model Number | FMU90-N11CA232AA1A |
Prosonic FMU90 E&H Instrument
,Ultrasonic Measurement E&H Instrument
| Supply / Communication | 90 ... 253 VAC |
|---|---|
| Accuracy | +/- 2mm + 0.17% of measured distance |
| Communication | up to 2x 4 ... 20 mA HART Profibus DP |
Prosonic FMU90 separated version with field housing or top hat rail housing for control cabinet instrumentation are suited for continuous, non-contact level measurement of fluids, pastes, sludge and powdery to coarse bulk solids. Also the flow measurement in open channels and weirs is possible as the simultaneous measurement of level and flow in a storm water overflow basin with only 1 sensor. Up to 6 relays for tendency alarm, flow pulse output or backwater/sludge alarm, 1 or 2 channel version.
Level measurement of fluids and bulk materials with 1 or 2 sensors for measuring of up to 45m (148ft) and level limit detection. Pump control, rake control and as option: additional pump control function.
- Calculations: Average, difference, sum
- Application flow: Flow measurement in open channels and weirs with 1 or 2 sensors
- Flow measurement with back water or sludge detection
- Up to 3 totalizers and 3 counters
- Counting or time pulse output for control of external units
- Simple, menu-guided operation with 6-line plain text display, 15 languages selectable
- Envelope curves on the display for quick and simple diagnosis
- Easy operation, diagnosis and measuring point documentation with the supplied "FieldCare" operating program
- Time-of-Flight correction via integrated or external temperature sensors
- Linearisation (up to 32 points, freely configurable) for the most common flumes and weirs pre-programmed and selectable
- Online calculation of the flume-/weir-flows via integrated flow curves
- Automatic detection of the sensors FDU9x
- Best possible prices and delivery time
- Long time experience in the field
- Well trained staff
- Own warehouse facilities
- Best relationships with branch office of manufacture
- Flexible and individual service for you
- Cheap and safe forwarder for shipments (air)
A: Yes, they are new and original.
A: One-year warranty.
A: Yes, it depends on what product you request, please check details with our sales.
A: We adopt T/T, alipay and paypal and Currency in EURO,USD,RMB
A: We can shipping all over the world.via DHL,UPS,Fedex,TNT and IPS,PDE,BRE,KARAPOST etc.
Transmitter, Safety barries, Flow meters, Probe, Sensor, Transducer. Valves,Analysis meter, Positioner, Acuator, etc.
